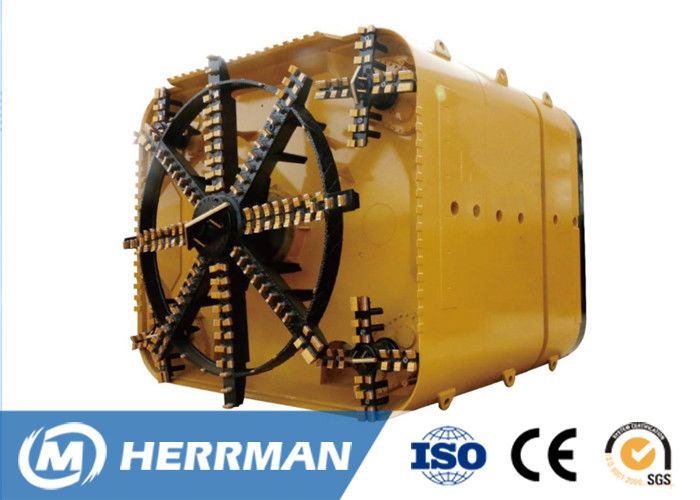

HM RPB Series Rectangular Pipe Jacking Engineering Construction Machine , Slurry Shield Tbm

HM RPB Series Rectangular Pipe Jacking Engineering Construction Machine , Slurry Shield Tbm
HM RPB Series Rectangular Pipe Jacking Engineering Construction Machine , Slurry Shield Tbm

Large Image :  HM RPB Series Rectangular Pipe Jacking Engineering Construction Machine , Slurry Shield Tbm

Product Details:
Place of Origin: CHINA
Brand Name: HERRMAN
Certification: ISO CE
Model Number: HM RPB SERIES
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Delivery Time: 30 DAYS
Payment Terms: L/C, D/P, T/T
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Soil: Normal Soil, Sand, Clay Color: Up To Customers
Warranty: 1 Year Applicable: Construction Works
High Light:

pipe jacking Engineering Construction Machine

,

Rectangular slurry shield tbm

,

pipe jacking slurry shield tbm

RPB SERIES

APPLICABLE DIAMETER:4200-6900MM

APPLICABLE GEOLOGY:Sand



TECHNICAL PARAMETER



DIMENSION(MM)ODXL CUTTER HEAD STEERING THRUST(T) SCREW CONVEYOR POWER(KW)
TOTAL POWER (KW) NOMINAL TORQUE(KN.M) RPM
5400x7500x6000 570 955,540,540 1.2,1.58,1.58 200 37x2
5000x7000x6000 540 540,540,540 1.58 200 30x2
4650x6900x5600 540 540,540,540 1.58 200 30x2
4500x5500x6200 388 1570,102,46 1.35,3.46,3.06 200 30x2
4300x7500x6000 462 1570,220 1.36,2.6 200 30x2
4200x6900x6000 462 1570,220 1.35,2.6 200 30x2
3000x3000x5290 120 640 1.79 120 30
2900x2900x5400 120 640 1.79 150 30
2800x2800x5400 120 640 1.79 120 30
2700x2700x4900 120 640 1.79 120 22
  1. Designed for tunneling cross street, highway and downtown area,used for construction of subway station, gas and electrical power pipeline etc. Full section cutting.
  2. Keeping earth pressure balance, low construction disturbance to surround soil.
  3. High space utilization rate, fewer construction area.
  4. No disturbance to the transportation and architecture on the ground.
  5. No noise and environment pollution during the construction.





HM RPB Series Rectangular Pipe Jacking Engineering Construction Machine , Slurry Shield Tbm 0
