Product Name: | Optical Cable Flexing Testing Machine | Application: | Cable Testing |
---|---|---|---|
Model: | GQR-1000 | Hoat Power Supply: | AC220V±10%,50~60Hz,0.8kW |
Deflection Movement Speed: | (100-350) Times Min, Set Freely | Pulley Diameter: | 200mm,250mm,300mm |
Flexing Travel: | 1000mm | Flexing Counts: | 1~9999mm |
HS Code: | 9031809090 | Hammer Bracket Weight: | 5kg X 2 |
Weight: | 600kg | Bearing: | NSK |
Motor: | SIEMENS | Color: | Color Plate Provided By Customer |
Warranty: | 12 Months | ||
Highlight: | wire testing machine,wire torsion testing machine |

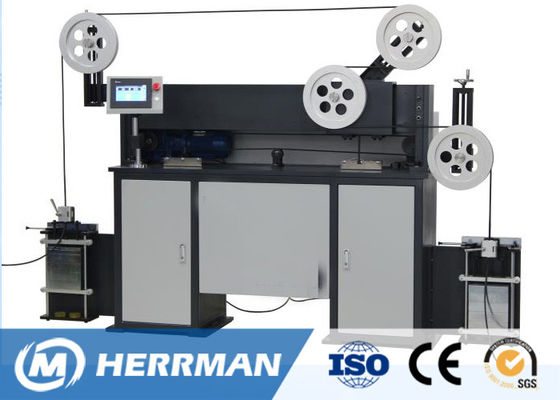

Optical cable flexing testing machine fiber optic cable flexing tester
Description
The equipment is used to test optical cable resistance repeated deflection properties. By applying repeated deflection force, for the qualified optical cable, no fiber fracture, fiber attenuation values meet standard, no optic cable jacket cracking, no damage of fiber and components
The equipment adopts the man-machine interface and PLC control, TFT true color screen display test parameters and data the equipment is infinitely adjustable-speed, beautiful appearance, and stable performance, simple and safe operation
Main technical specification
Model | GQR-1000 |
Deflection travel | 1000mm |
Deflection movement speed | (100-350) times min, set freely |
Deflection movement times | 1-9999, set freely |
Hammer base weight | 5kg×2 |
Hammer weight | 2 set of standard weight, each including:5kg×4,2.5kg×1,1.0kg×1 |
Pulley diameter | 200mm,250mm,300mm |
Host power supply | AC220V±10%,50~60Hz,0.8kW |
Weight | 600kg |
Installation Requirement
Power supply: single phase, AC220V±10%, 50~60Hz, 0.8kW.
Install onto a stable base and room of more than 1 m around.
Ambient temperature: 25℃±10℃, humidity: ≤80% non-condensing.
No vibrating or corrosive media indoor.
Lay-out Drawing
