1500kg 3300lbs 1.5Ton Electric Lift Stacker Reach Truck Adjustable Steering Wheel

Name: 1500kg 3300lbs 1.5Ton Electric Lift Stacker Reach Truck Adjustable Steering Wheel
Brand: HERRMAN
SKU: FB20R FB25R
Price: 1.00 USD
Availability: InStock
Rating: 5 (122 reviews)

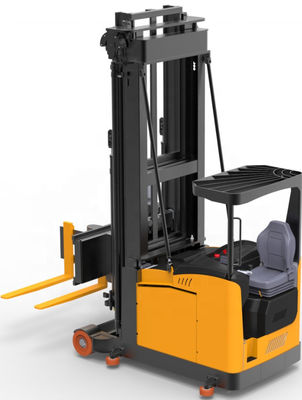

Large Image : 1500kg 3300lbs 1.5Ton Electric Lift Stacker Reach Truck Adjustable Steering Wheel

Product Details:

Place of Origin:	CHINA
Brand Name:	HERRMAN
Certification:	ISO,CE,CQC,IQNET,CNAS
Model Number:	FB20R FB25R

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Negotiation
Packaging Details:	1pc / pallet or 1pc / wooden box
Delivery Time:	21-30 work days
Payment Terms:	L/C, D/A, D/P, T/T, O/AWestern Union, MoneyGram
Supply Ability:	200 Unit/Units per Month

Contact Now

Detailed Product Description

Condition:	New	Power Souce:	AC Motor
Min. Lifting Height:	88mm	Fork Length:	1250mm
Fork Width:	125mm	Warranty:	Warranty: 2 Years
After-sales Service Provided:	Free Spare Parts	Core Components:	Motor
Load Centre Distance:	600mm	Steering Type:	Electrikc Power Steering EPS
High Light:	3300lbs electric lift stacker , 1.5Ton electric lift stacker , 3300lbs electric reach truck

Advantages:

Full AC control system.

Finger-tips operation handle.

Electric power steering (EPS) system.

With electric magnetic multi-valve.

Multi-function display, brake status, driving direction, hour meter, driving speed, fault code etc.

48V -3 phase AC type with large capacity battery 1000Ah.

With smallest Aisle width is 1600mm. 8. Full suspension comfortable seat with belt is adjustable.
Germany ZF brand gear box.

Adjustable steering wheel.

Sideway battery system.

SIZE INFORMATION

Model	OPD15
Operation type		SEATED
Capacity / rated load	kg	1500
Track width,front	b10(mm)	1356
Lift height	h3(mm)	5000/6200/7400/8000/8600/9500
Lowered mast height	h1(mm)	2800/3200/3600/3800/4000/4300
Free lift	h2(mm)	1700/2100/2500/2700/2900/3200
Extened mast height	h4(mm)	6300/7500/8700/9300/9900/10800
Height of overhead guard (cabin)	h6(mm)	2200
Seat height / stand height	h7(mm)	1120
Overall length	l1(mm)	3340
Length to face of forks	l2(mm)	3055
Overall width	b1/b2(mm)	1260/1520
Fork dimensions	s/e/l(mm)	45/125/1250
Fork carriage width	b3(mm)	880
Width over forks	b5(mm)	845
Width across guide roller	b6(mm)	1600
Reach,lateral	b7(mm)	1300
Aisle width for pallets 1200*800	Ast(mm)	1700
Turning radius	Wa(mm)	2170
Pallet width	b12(mm)	1200
Pallet length	l6(mm)	800/1200
Travel speed,laden/unladen	Km/h	8/8.5
Lift speed,laden/unladen	mm/s	220/320
Lowering speed,laden/unladen	mm/s	400/350
Reach speed,laden/unladen	mm/s	150/150
Service brake		regenerative/hydraulic
Parking brake		electric spring-loaded
Type of drive control		AC power control

PRODUCT DESCRIPTION

1500kg 3300lbs 1.5Ton Capacity 48V Forklift with AC motor Lateral Electric Reach Truck

1500kg 3300lbs 1.5Ton Electric Lift Stacker Reach Truck Adjustable Steering Wheel 1

1500kg 3300lbs 1.5Ton Electric Lift Stacker Reach Truck Adjustable Steering Wheel 2

1500kg 3300lbs 1.5Ton Electric Lift Stacker Reach Truck Adjustable Steering Wheel 3

1500kg 3300lbs 1.5Ton Electric Lift Stacker Reach Truck Adjustable Steering Wheel 4

1500kg 3300lbs 1.5Ton Electric Lift Stacker Reach Truck Adjustable Steering Wheel 5

FAQ

Q1: Can Herrman provide customized products? OEM products or ODM products?

A1: Yes, Herrman can provide customized products according to your requirement. Both OEM and ODM are acceptable. We do a lot ofnon-standard products, welcome your special custom-made.

Q2: What's the specification of the chargers?

A2: Herrman have all kinds of the chargers and welcome the customers to custom-made.

Q3: How about the delivery time?

A3: Usually Herrman producing time is 15-20 working days after we receive the advanced payment. For some standard products, we have most in stock and could delivery immediately.

Q4: Can we print the LOGO on products?

A4: Yes, the OEM is available with the permission of our customers.

Q5: What is your payment term?

A5: T/T,L/C or O/A if you want any other way, please contact us.

Q6: What can I get from cooperating with Herrman?

A6: 1. Unique products, with customized service.

2. Timely production and delivery, time is money.

3. Market protection service, long term business strategy.
