Product Details:
Payment & Shipping Terms:
|
| Name: | Electric Stacker With Initial Lift | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, |
|---|---|---|---|
| Power Souce: | AC Motor | Min. Lifting Height: | 2500mm |
| Fork Length: | 1070/1150mm | Service Weight: | 1205KG |
| Max.lift Height: | 5600mm | Fork Width: | 180mm |
| High Light: | 3300lbs walkie pallet stacker,3300lbs walk behind pallet stacker,5600mm walkie pallet stacker |
||

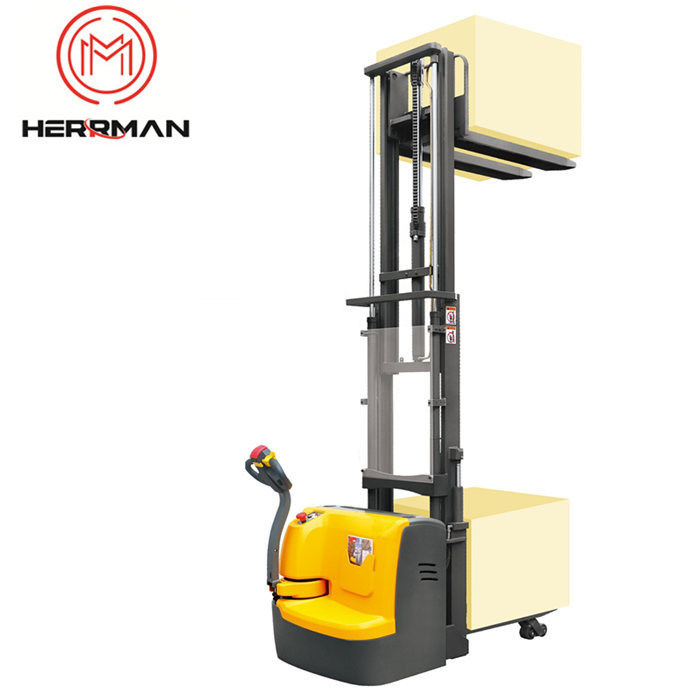

This heavy stacker includes two models with a rated load capacity of 1500kgs.
Specifically designed for intensive stocking operations at medium height warehouse.
2000kgs load can be transported using the initial lift function.
| Model | CDDR15S | ||
| Load capcacity | Q(kg) | 1500 | 1500 |
| Load centre distance | c(mm) | 600 | 600 |
| Load distance,centre of drive axle to fork | x(mm) | 697 | 697 |
| Height,mast lowerd | h1(mm) | 1757/2007/2157/2257 | 2022/2182/2382 |
| Free lift | h2(mm) | 1300/1550/1700/1800 | 1570/1740/1940 |
| Max.lift height | h3(mm) | 2500/3000/3300/3500 | 4500/5000/5600 |
| Initial lift | h5(mm) | 120 | 120 |
| Length to face of forks | l2(mm) | 878 | 878 |
| Overall width | b1(mm) | 820 | 820 |
| Overall length | l1(mm) | 1982 | 1982 |
| Fork dimensions | S/e/l(mm) | 60*180*1070(1150) | 60*180*1070(1150) |
| Width overall forks | b5(mm) | 570/650 | 570/650 |
| Aisle width for pallets 800*1200 lengthways | Ast(mm) | 2500 | 2500 |
| Turning radius | Wa(mm) | 1575 | 1575 |
| Travel speed,laden/unladen | Km/h | 5.8/6 | 5.8/6 |
| Battery voltage,nominal capacity K5 | V/Ah | 24/240 | 24/240 |
| Service weight(with battery) | kg | 1205 | 1205 |
PRODUCTION SCENE
PACKING&SHOPING
FAQ
Q1: Can Herrman provide customized products? OEM products or ODM products?
A1: Yes, Herrman can provide customized products according to your requirement. Both OEM and ODM are acceptable. We do a lot ofnon-standard products, welcome your special custom-made.
Q2: What's the specification of the chargers?
A2: Herrman have all kinds of the chargers and welcome the customers to custom-made.
Q3: How about the delivery time?
A3: Usually Herrman producing time is 15-20 working days after we receive the advanced payment. For some standard products, we have most in stock and could delivery immediately.
Q4: Can we print the LOGO on products?
A4: Yes, the OEM is available with the permission of our customers.
Q5: What is your payment term?
A5: T/T,L/C or O/A if you want any other way, please contact us.
Q6: What can I get from cooperating with Herrman?
A6: 1. Unique products, with customized service.
2. Timely production and delivery, time is money.
3. Market protection service, long term business strategy.
