Product Details:
Payment & Shipping Terms:
|
Warranty: | 3 Year | Customized Support: | OEM, ODM |
---|---|---|---|
Model Number: | CBD25R-II | Lift Drive / Actuation: | Electric Motor |
Color: | All Accepted | Max. Lifting Height: | 202mm |
Load Capacity: | 2.5T | Turning Radius: | 1550/1600/1670mm |
Travel Speed, Laden/: | 7/7.1 Km/h | Ervice Weight(With Battery): | 750kg |
High Light: | 2500KG walkie rider pallet jack,2.5T walkie rider pallet trucks,7km/h front rider pallet jack |
ELECTRIC PALLET TRUCK PRODUCT DESCRIPTION

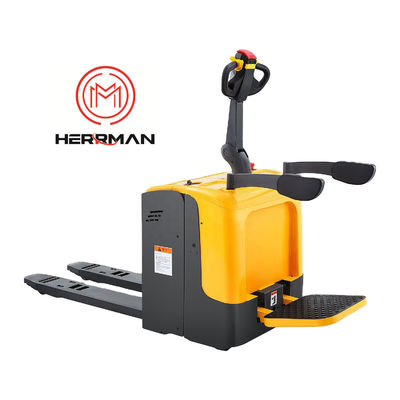

HERRMAN 2500KG 2.5Ton Hydraulic Electric Rider Pallet Jack With Speed Sensor For Large Warehouse
ELECTRIC PALLET TRUCK PRODUCT INFORMATION
Model | CBD25R-II | ||||
Capacity | (lbs) | 5500 | (kg) | 2500 | |
Load centre distance | c | (inch) | 23.6 | (mm) | 600 |
Fork height, lowered | h13 | (inch) | 3.2 | (mm) | 82 |
Max. lift height | h3 | (inch) | 8 | (mm) | 202 |
Height of tiller in drive position Min/Max. | h14 | (inch) | 45/56 | (mm) | 1150/1430 |
Overall length | l1 | (inch) | 67.3/69.3/72 | (mm) | 1710/1760/1830 |
Length to face of forks | l2 | (inch) | 24 | (mm) | 610 |
Overall width | b1 | (inch) | 30.5 | (mm) | 775 |
Fork dimensions | s/e/l | (inch) | 2.1/7.1/43.3/(45.3/48) | (mm) | 53/180/1100(1150/1220) |
Width overall forks | b5 | (inch) | 20.5/21/25.6/27 | (mm) | 520/550/650/685 |
Aisle width for pallets 1000x1200lengthways | Ast | (inch) | 93/94.7/97.4 | (mm) | 2360/2405/2475 |
Aisle width for pallets 800x1200lengthways | Ast | (inch) | 88.4/89.4/90.7 | (mm) | 2245/2270/2305 |
Turning radius | Wa | (inch) | 61/63/65.8 | (mm) | 1550/1600/1670 |
Travel speed, laden/unladen | (Km/h) | 7/7.1 | Km/h | 7/7.1 | |
Battery Voltage, normal capacity K5 | V/Ah | 24/240 | |||
Truck weight | (lbs) | 1650 | (kg) | 750 |
