Product Details:
Payment & Shipping Terms:
|
| Product Name: | Microcomputer-controlled Electronic Universal Tensile Testing Machine | Load Resolution: | 1/300000 |
|---|---|---|---|
| Round Specimen Clamping Range (mm): | 4-9,(9-14,14-21optional ) | Flat Specimen Clamping Range (mm): | 0-7,(7-14,14-21 Optional ) |
| Compression Plate (mm): | Φ100x100mm | Electronic Extensometer: | YUU 10/50(Optional ) |
| High Light: | Crosshead Travel Tensile Strength Tester Machine,Universal Tensile Testing Machine,Microcomputer Controlled Tensile Tester |
||
Crosshead Travel Tensile Strength Tester Machine
Microcomputer-controlled electronic universal Tensile testing machine
1. Usage
Microcomputer-controlled electronic universal Tensile testing machine is a high-precision, multi-purpose material testing machine that tests the mechanical properties of various metal materials, non-metal materials, composite materials, and polymer materials in the state of tension, compression, bending, shearing, peeling , tearing and other mechanical properties.
2. Main Technical Parameters
| Model |
ETM-5 ETM-10 ETM-20 |
ETM-30 ETM-50 |
ETM-100 |
ETM-200 ETM-300 |
ETM-500 ETM-600 |
| Max. load force | 5KN 10KN 20KN |
30KN 50KN |
100KN |
200KN 300KN |
500KN 600KN |
| Crosshead travel(mm) | 1100 | 1100 | 1100 | 1100 | 1100 |
| Effective tensile space(mm) | 700 | 700 | 700 | 400 | 400 |
| Effective test width (mm) | 400 | 450 | 500 | 600 | 650 |
| Crossbeam travel speed (mm/min) | 0.001-1000 | 0.001-500 | 0.001-500 | 0.001-300 | 0.001-300 |
| Load resolution | 1/300000 | ||||
| Tensile grip | Manual wedge tensile Fixture(Hydraulic automatic clamping fixture optional) | ||||
| Round specimen clamping range (mm) | 4-9,(9-14,14-21optional ) | ||||
| Flat specimen clamping range (mm) | 0-7,(7-14,14-21 optional ) | ||||
| Compression Plate (mm) | Φ100x100mm | ||||
| Electronic Extensometer | YUU 10/50(Optional ) | ||||
| Large deformation extensometer | DBX-800(optional) | ||||
3. Product selling point
3.1 Fully digital three closed-loop control (Stree ,strain, displacement),Ensure test date accuracy.
3.2 Adopt Germany AMADA control processing equipment, ensure manufacturing accuracy .
3.3 USA TRANSCELL CELTRON brand high precision load cell.
3.4 Japan Panasonic brand AC servo motor
3.5 Computer +software control display 6-8 kinds of test curves
3.6 Various fixtures can meet all customer’s requirements

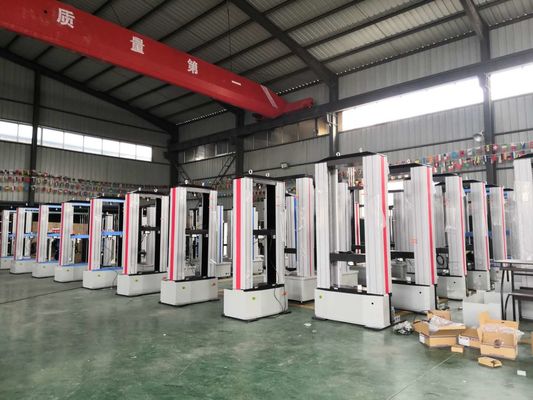

4. Photos
