Product Details:
Payment & Shipping Terms:
|
| Name: | Single Side Semi-Conductive Water Blocking Tape | Usage: | Coating |
|---|---|---|---|
| Min. Thickness: | 0.30mm | Tensile Strength (JG-BMBD30): | Same Or More Than40N/cm |
| Elongation: | More Than 12% | Surface Resistance(JG-BMBD30): | Less Than1500 |
| Weight: | 150+/-10g/m2 | Color: | Black |
| HS Code: | 5603931000 | Warranty: | 1 Year |
| High Light: | double sided conductive tape,black conductive tape |
||
Single side Semi-Conductive water blocking Tape double sides water proofing tape for
Construction
Single side Semi-Conductive water blocking Tape with semi-conductive coating on one side
Main Specification
| Property | Test method | JG-BMBD30 | JG-BMBD35 |
| Thickness | Test2/ISO9073-2 | 0.30+/-0.02mm | 0.35+/-0.02mm |
| Weight | Test3/ISO9073-1 | 180+/-30g/m2 | 200+/-30g/m2 |
| Tensile strength | Test10/ISO9073-3 | same or more than40N/cm | same or more than60N/cm |
| Elongation | Test10/ISO9073-3 | same or more than25% | same or more than25% |
| Surface resistance | Test8/DIN53482 | less than1500 | less than1500 |
Characteristics
Strong tape with high tensile strength
High resistance to extrusion penetration; high temperature resistance
Proven long-term and short-term stability
Low surface and volume resistance
REACH and RoHS compliant

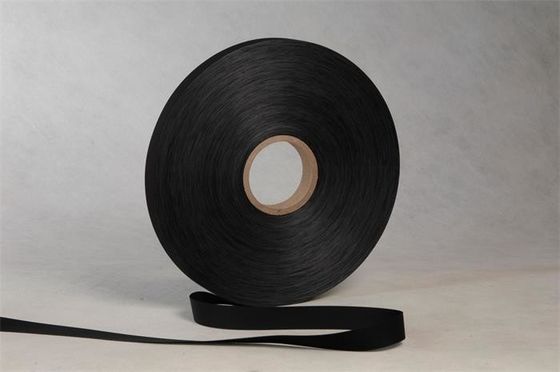

Product Photo
