Drum Twister Type HV Cable Armouring Machine 130 Max Cabling OD Energy Efficient

China Drum Twister Type HV Cable Armouring Machine 130 Max Cabling OD Energy Efficient supplier
Drum Twister Type HV Cable Armouring Machine 130 Max Cabling OD Energy Efficient supplier Drum Twister Type HV Cable Armouring Machine 130 Max Cabling OD Energy Efficient supplier Drum Twister Type HV Cable Armouring Machine 130 Max Cabling OD Energy Efficient supplier Drum Twister Type HV Cable Armouring Machine 130 Max Cabling OD Energy Efficient supplier

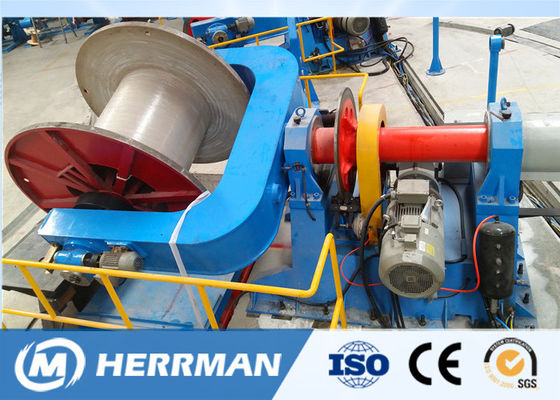

Large Image :  Drum Twister Type HV Cable Armouring Machine 130 Max Cabling OD Energy Efficient

Product Details:

Place of Origin: China
Brand Name: Herrman
Certification: CE, SGS
Model Number: 2500, 3150, 3500

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: By Negotiation
Packaging Details: by ply-wooden case
Delivery Time: 80 work days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 10sets per month
Contact Now
Detailed Product Description
Product Name: Drum Twister Type Armoring Machine Function: Cabling And Armoring
Max. Cabling OD: 130 Nos. Of Steel Wire: 96pcs
Motor: Siemens Bearing: NSK
Cabling Pitch: Can Be Adjusted, Step-less Warranty: 1year
Usage: Armoring Certification: ISO 9001

Drum Twister Type armoring machine Drum twister for HV cable



Description



Drum Twister Type armoring machine is used for laying-up of large section, long length power cables. The line is for laying-up of pre-spiral or non-pre-spiral cable cores and Milliken cable. The line is used for steel wires armoring of power cables, too.



Main Specification



Main Technical Data:
Model JPD-2500 JPD-3150 JPD-3600
Max.cabling OD Φ20~Φ120 Φ25~Φ130 Φ25~Φ130
Max.rotation speed of T/U & P/O (RPM) 50 30 30
Cabling pitch can be adjusted, step-less
Max.Linear speed (m/min) 50 40 40
Max.pulling force Standard 3000
Armoring with 96 steel wires 5000
Central P/O reel Φ2500 Φ3150 Φ3600
P/O reel Φ1600 Φ2000 Φ2500
T/U reel Φ2500 Φ3150 Φ3600
Armoring steel wire reel Φ500 Φ630 Φ630
Main motor power (KW) 45 55 75
Central P/O motor power (KW) 22 15 18.5



Main Parts



1 Φ2000 rotating pay-off stand(with lifting platform)

2 Pay-off stand of filling yearns

3 Guiding rollers stand

4 Three row cables assembly die set

5 Taping head (non-metallic tapes)

6 4T Rotating belt caterpillar (having meter counter)

7 Φ3150 rotating take-up stand with traverse(with lifting platform)

8 Electric transmission and control system

9 Pneumatic hydraulic system

10 Safe fences

​11 2000 central pay-off

12 Steel wire pay-off syste,





Drawing for reference
