|Name:||Argon Arc Welding Machine||Function:||Armoring|
|Bearing:||NSK Series||Motor，PLC Controller，HMI:||SIEMENS Series|
Automatic Argon Arc Welding Machine,
HV Cable Argon Arc Welding Machine,
HV Cable Armouring Machine

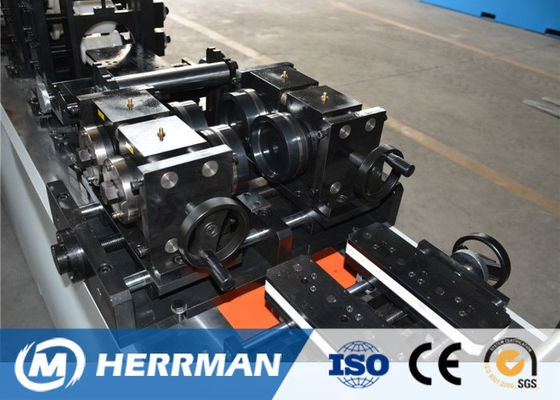

Automatic Argon Arc Welding Machine For HV Cable Metal Sheathing Pipe Armoring
Argon arc welding machine for HV cable metal sheathing pipe mental pipe armoring
Argon arc welding machine is used for producing the metal protective jacket for the cables, like railway signal cable, flexible fireproof cable, MV cable, etc.
1 After cutting the margin of clean copper tape (aluminum tape, stainless steel tape) precisely, the metal tape will be formed longitudinally by special mould and welded precisely under the protection of inert gas, then the final products can be done perfectly after fixing diameter and corrugation.
2 The whole machine adopts SIEMENS PLC controller, SIEMENS HMI and SIEMENS inverter speed regulator. The electric current and speed can be tracked synchronously. It is applicable for welding various lengths.
3 The machine cabinet is imported from Germany; the majority of the electric components are imported form famous joint-venture’s production in China. PLC, touch screen and frequency converter are Siemens. The main welder is from U.S Lincoln.
|Thickness of welding tape(mm)||Aluminium tape||0.8≤δ≤4||0.8≤δ≤3.5||0.6≤δ≤2|
|Steel Tape||0.3 ≤ δ ≤ 1.0||0.3 ≤ δ ≤ 1.0||0.3 ≤ δ ≤ 1.0|
|Dia. Of welding pipe (mm)||Φ50~Φ200||Φ30~Φ120||Φ10~Φ50|
|Linear speed (m/min)||≤8||≤15||≤20|
|Corrugating shape||ring type, spiral type||ring type, spiral type||ring type, spiral type|
|Corrugating speed (r/min)||800||2000||3000|
|Corrugating pitch (mm)||10~60||10~40||4~20|
|Usage||flexible fireproof cable, railway signal cable, medium voltage cable, high speed rail copper alloy ground cable|
Drawing for reference
