20r / Min RTP Pipe Making Machine Steel Tape Armoring Machine Independent Motor Driven

China 20r / Min RTP Pipe Making Machine Steel Tape Armoring Machine Independent Motor Driven supplier

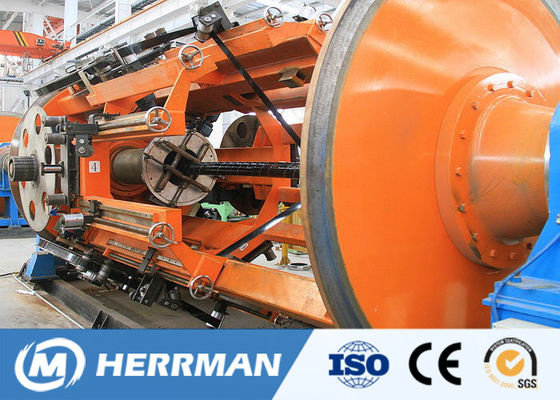

Large Image :  20r / Min RTP Pipe Making Machine Steel Tape Armoring Machine Independent Motor Driven

Product Details:

Place of Origin: China
Brand Name: Herrman
Certification: CE SGS ISO CQC
Model Number: 1200/4, 1200/6

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: By Negotiation
Packaging Details: Plastic Films Winding
Delivery Time: 150 days
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: 12 Sets Per Year
Contact Now
Detailed Product Description
Usage: Steel Tape Armoring Final Product: RTP Pipe With Steel Tape
Pipe Diameter: Max. 500mm Steel Tape O.D.: Max. 1200mm
Steel Tape Width: 30-90mm Steel Tape Thickness: 0.4-2.0mm
Linear Speed: 6m/min Rotating Speed: 20r/min

RTP Pipe Manufacturing Machine Pipe Wrapping Machine Steel Tape Armoring Machine



1. Application



The machine is used for armoring plastic pipeline by steel tape for reinforcement.



2. Main Features



- Tape pay-off adopts active pay-off type. The pay-off tension is constant and can be adjusted. The tension value can be shown on the touch screen.

- It has steel tape low level detector(photoelectric type), which can alarm and stop automatically when tape is empty.

- Each part is driven by independent motor. It adopts SIEMENS PLC to unified control and managed the working condition of each motor. The rotating speed and taping pitch can be changed by stepless and shown on the touch screen.



3. Main Technical Specification



Specification 1200/4 1200/6
Qty of tape plates 4 plates 6 plates
Steel tape O.D. 1200mm 1200mm
Steel tape size Width 30-90mm 30-90mm
Thickness 0.4-2.0mm 0.4-2.0mm
Max. armoring O.D. 500mm 500mm
Max. armoring rotating speed 20rpm 18rpm
Motor power 30kw 30kw
Haul-off device Hual-off type 4 belts caterpillar 4 belts caterpillar
Max. hual-off force 10T 10T
Max. linear speed 6m/min 6m/min
Hual-off motor power 11kw 11kw
