|Product Name:||Submarine Flexible RTP Pipeline Making Machine Cable Turntable Take Up||Diameter:||25000mm|
|Max.Loading Weight:||4000T||Max.Speed Of CollectingLaying Pipes:||20m/min|
|Turntable Size:||25/4000||Max.Pulling Forceof Tension Device:||15T|
flexible pipe machine,
pipe coiler machine

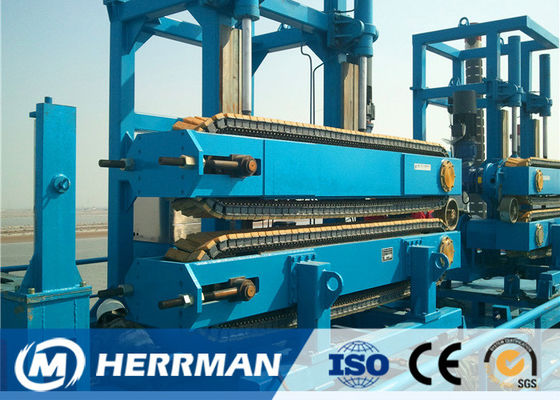

Submarine Flexible RTP Pipeline Making Machine Cable Turntable Take Up
1. Main Feature
The device is used for taking up and paying off pipe. It consist of turntable, traversing device, haul-off device and electrical control system.
- Each part is driven by independent motor. It adopts SIEMENS PLC to unified control and coordinate the working condition of each motor.
- The turntable is composed of multiple cell blocks of the same type, and is made of steel structure weld parts. Two cell blocks are connected with each other by connecting plate bolt. Each cell block and small turntable for center slewing bearing will be welded after connected with each other by bolt. This structure is stable and convenient to disassemble.
Main Technical Data
