High Speed Wire Cable Machine Copper Intermediate With Continuous Annealing

Name: High Speed Wire Cable Machine Copper Intermediate With Continuous Annealing
Brand: Herrman
SKU: HM250-17, HM250-11, HM250-9
Price: 28 USD
Availability: InStock
Rating: 4.7 (105 reviews)

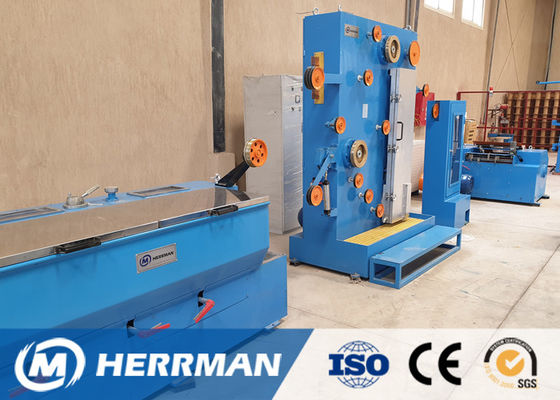

Large Image : High Speed Wire Cable Machine Copper Intermediate With Continuous Annealing

Product Details:

Place of Origin:	China
Brand Name:	Herrman
Certification:	ISO, CE, SGS
Model Number:	HM250-17, HM250-11, HM250-9

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD28,000 - 40,000 / set
Packaging Details:	To be packed in the containers, suitable for long distance sea-transportation and well protected against change of climate, moisture and shock.
Delivery Time:	90 days
Payment Terms:	T/T, L/C, D/A, D/P
Supply Ability:	100 Sets per year as per request

Contact Now

Detailed Product Description

Input Wire:	Φ2.5~Φ3.5mm	Output Wire:	Φ0.4~Φ1.6mm
Motor Power:	55kw	Max. Speed:	1200m/min
Bearing:	NSK	Converter:	SIEMENS G120
High Light:	Continuous Annealing Wire Cable Machine , High Speed Wire Cable Machine , Copper Intermediate Drawing Machine

High Speed Wire Cable Machine Copper Intermediate Drawing Machine With Continuous Annealing

Wire Cable Machine Copper Intermediate Drawing Machine With Continuous Annealing

1. Introduction

The machine is mainly used to draw Φ2.5~Φ3.5mm copper wire to Φ0.4~Φ1.6mm copper wire then continuous annealing.

2. Main Feature

2.1 Convenient operation and quick changing dies.

2.2 Full immerging or spray for dies and capstans to ensure an effective cooling and lubricating upon wires.

3. Main Technical Specification

Model	HM250-17	HM250-13	HM250-9
Inlet rod dia.	Φ2.5~Φ3.5mm	Φ2.5~Φ3.5mm	Φ2.5~Φ3.5mm
Outlet wire dia.	Φ0.4~Φ1.6mm	Φ0.8~Φ2.5mm	Φ1.0~Φ2.8mm
Max. mechanical speed	20m/s	20m/s	20m/s
Drawing wheel dia.	Φ250mm	Φ250mm	Φ250mm
Drawing motor	55kw	45kw	45kw
