Steel Wire Armouring Drum Twister Machine For Milliken Conductor Low Noise

Steel Wire Armouring Drum Twister Machine For Milliken Conductor Low Noise
Steel Wire Armouring Drum Twister Machine For Milliken Conductor Low Noise
video play

Large Image :  Steel Wire Armouring Drum Twister Machine For Milliken Conductor Low Noise

Product Details:
Place of Origin: China
Brand Name: Herrman
Certification: CE, UL, GS, SGS, TUV, ISO
Model Number: 1600MM - 4500MM
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: By Negotiation
Packaging Details: EXPORT PACKING
Delivery Time: 110 DAYS
Payment Terms: L/C, D/A, D/P, T/T or By Negotiation
Supply Ability: 10 SETS PER MONTH
Detailed Product Description
Name: Drum Twister Cable Lay Up Machine For Milliken Conductor Cable Dia: 200mm
Speed: 100m / Min Color: By Customer
Brand: Herrman Payoff For Reels: Ø 1,250 Mm To Ø 3,000 Mm
High Light:

Armouring Drum Twister Machine

,

Steel Wire Drum Twister Cable Machine

,

Milliken Conductor Drum Twister Machine

Steel Wire Armouring Drum Twister Machine For Milliken Conductor Low Noise



1. Application

- Take up reel diameter from 1,600 mm to 2,600 mm with pulling caterpillar. For laying up of round or sectoral cables, armouring and screening of cables up to Ø 90 mm



- Take up reel diameter from 2,800 to 4,500 mm with rotating pulling caterpillar. For laying up of round or sectoral cables, armouring and screening of cables up to Ø 150 mm and for the production of Milliken cables with cross section up to 3,500 mm2



2. Specification

Wide range of rotating fork type payoff for reels from Ø 1,250 mm to Ø 3,000 mm



Payoffs for armouring/screening process from coils/baskets or reel



Wire tension kept constant from full to empty pay off reel



Motorized pintles for rotating pay off and take up units



Full range of taping heads for plastic, copper, aluminum and steel tapes with different size pads, tape widths and thicknesses



Hydraulic lifting platform and motorized trolley for reel loading/unloading



Line components driven by independent motors



A.C. motors with control inverters



 3. Technical Data:



Take Up Reel Size Drum O.W. (mm) Loading capacity(t) Max. rotation speed of drum twister
2000 1500 8 60
2200 1700 10 60
2500 1900 12 50
3150 2300 15 40
3500 2300 25 30
3600 2300 25 30
4000 2400 30 20
4200 2400 30 20



4. Drawing



Steel Wire Armouring Drum Twister Machine For Milliken Conductor Low Noise 0

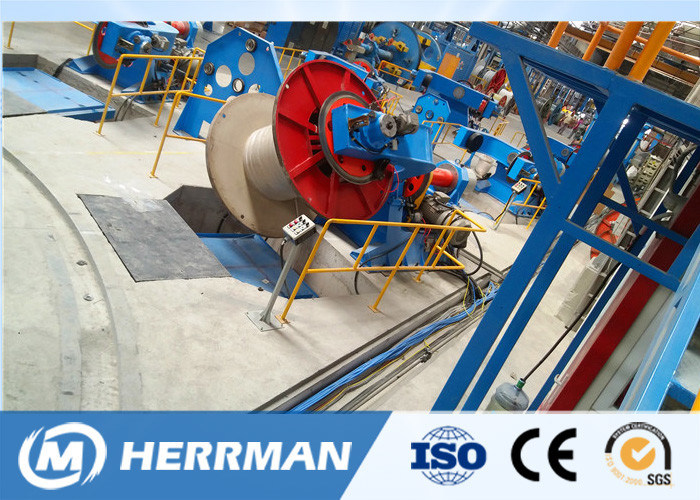

 5. Photo



Steel Wire Armouring Drum Twister Machine For Milliken Conductor Low Noise 1
