|Name:||1200/1+6 Cradle Type Laying Up Machine||Usage:||Cable Laying Up|
|Max. Diameter Of Single Wire:||Ф5mm～Ф35mm||Rotating Speed Of Cage:||35rpm|
|Laying-up Pitch:||80-2000 Mm||Caterpillar Linear Speed:||30m/min|
|Max. Pulling Force:||2000kg||Pay-off Reel Size In Cage:||PN1200mm|
|Take-up Reel Size:||PN1600～PN2800mm||Warranty:||12 Months|
Cradle type Layup Machine,
35mm wire Layup Machine,
35mm Cradle Layup Machine

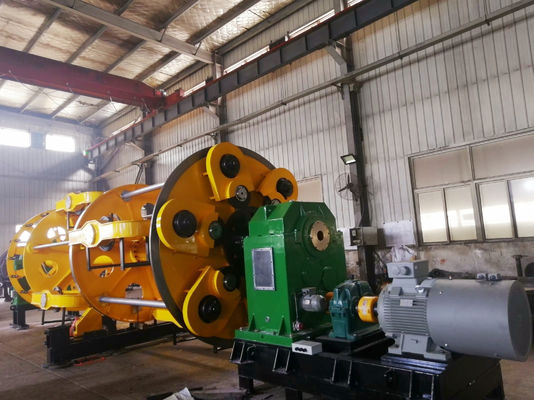

1200/1+6 Cradle type laying up machine
This 1200/1+6 Cradle type laying-up machine is mainly used in insulated wire, rubber insulated wire, XLPE insulated wire,
The outer layer has taping or shielded braided layer.The machine starts and stops smoothly, and the operation and maintenance are simple and convenient.
2. Main technical specification
|Max. diameter of single wire||
|Rotating speed of cage||
|Caterpillar linear speed||
|Max. pulling force||
|Pay-off reel size in cage||
|Take-up reel size||
|Stranding cage motor||
6B stranding cage 1SET
wire die holder 1SET
# type wire guiding stand 1SET
2000kg flat belt caterpillar 1SET
wire supporting stand 1SET
Taping machine 2SETS
Meter counter 1SET
Ф2800 Column type take-up stand with traverse 1SET
Ф2500 Column type pay-off stand 1SET
transmission system 1SET
electric control system 1SET
4.Mechanical and electrical components
4.1 Main motors are from SIEMENS.
4.2 All the bearings are from Chinese famous brand.
4.3 All of the low-voltage electric elements are from Schneider.
4.4 PLC is from SIEMENSE
4.5 AC inverter is from SIEMENS.
4.6 Pneumatic elements are from AIRTAC
Note:(The product name of specific parts is mainly based on customer requirements)
