| Rated Loading Capacity: | 1.5 Ton | Min. Lifting Height: | 85mm |
|---|---|---|---|
| Fork Outer Width: | 550/685mm | Fork Length: | 1100/1200mm |
| Power Type: | Lithium Battey | Color: | Red Or Customized |
| Highlight: | 3300lbs Electric Pallet Truck,1500kg Electric Pallet Truck,3300lbs electric stacker trucks |
||

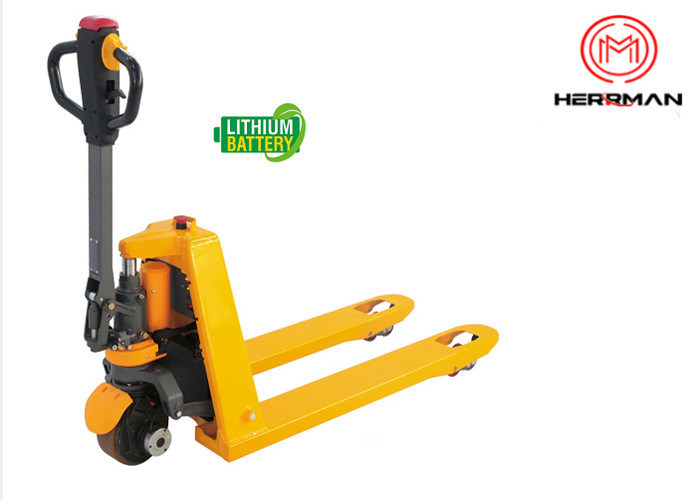

1.5T 3300lbs Lithium battery Powered Electric Pallet Truck
Standard:
* Lithium battery capacity: 24V/20AH.
* Handle with bully switch.
* High quality emergency switch ( as key switch).
* Split rocker arm It makes the equable stress in order to keep the long-time using.
* Driving wheel with horizontal mounted motor, convenience to maintain.
* External battery charger connector, can be charged separately even the battery were used out.
| Item | Model | HM CBD15 | |
| 1 | Load capacity | kg | 1500 |
| 2 | Load Centre | mm | 600 |
| 3 | Service Weight(without battery) | kg | 120 |
| 4 | Driving wheel size | ∅×w(mm) | Φ210×70 |
| 5 | Balance wheel size | ∅×w(mm) | Φ80×60 |
| 6 | Lifting Height | mm | 200 |
| 7 | Lowered fork Height | mm | 85 |
| 8 | Overall Length | mm | 1603 |
| 9 | Overall Height | mm | 685 |
| 10 | Fork Size | mm | 50/150/1150 |
| 11 | Fork Width | mm | 550/685 |
| 12 | Ground clearance under mast | mm | 35 |
| 13 | Turning radius | mm | 1398 |
| 14 | Driving Speed,load/unload | km/h | 4.2/4.5 |
| 15 | Maximum gradeability load/unload | mm/s | 5/10 |
| 16 | Drive Motor | kw | 0.75 |
| 17 | Lift Motor | kw | 0.8 |
| 18 | Battery voltage/rate capacity | V/Ah | 24V/20Ah |
| 19 | Brake Type | Electronic brake |
