Metal Pipe Welding & Corrugating Line

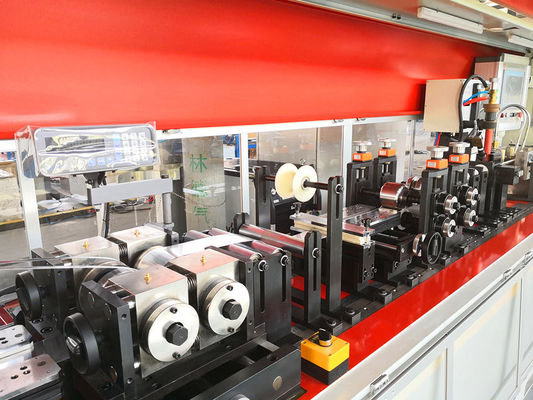

Large Image : Metal Pipe Welding & Corrugating Line

Product Details:

Place of Origin:	China
Brand Name:	Herrman
Certification:	CE, UL, GS, SGS, TUV, ISO
Model Number:	50, 100, 120, 140, 180, 200

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	By Negotiation
Packaging Details:	EXPORT PACKING
Delivery Time:	42 DAYS
Payment Terms:	L/C, D/A, D/P, T/T and Negotiation
Supply Ability:	10 SET PER MONTH

Contact Now

Detailed Product Description

Name:	Φ180mm Metal Pipe Welding & Corrugating Line	Welded Metal Material:	Copper Tape, Al Tape And Stainless Steel Tape
Max Welding Speed:	8m/min	Max Pulling Force:	2.103000kg
Welded Pipe Diameter:	2.1Φ40～Φ180mm	Application:	Flexible Fireproof Cable, Railway Signal Cable, Medium Voltage Cable, High Speed Rail Copper Alloy Ground Cable

Φ180mm Metal Pipe Welding & Corrugating Line1.Usage

1.Usage

This line is mainly use for metal sheathing on high voltage cable.

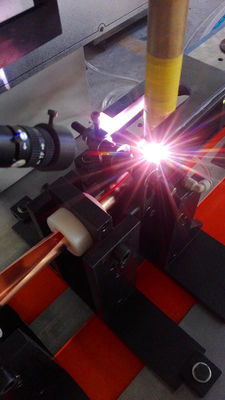

This production line is mainly used in the production of high-voltage cable metal sheath. The clean metal belt after side shearing through special forming die continuous welding by inert gas and then corrugation.

2.Main Technical Specification

2.1Welded Pipe diameter Φ40～Φ180mm

2.2Welded metal material copper tape, Al tape and Stainless Steel tape

2.3 Tape thickness CU:0.3mm～1.2mm AL:1.0mm～4.0mm SS:0.3mm～1.0mm

2.4Max welding speed 8m/min

2.5Welding current 5～350A

2.6Max Corrugated speed 800rpm

2.7Corrugated pitch 8mm～40mm

2.8Corrugated depth 1mm～5mm

2.9Corrugated type spiral, ring

2.10Max pulling force 3000kg

2.11Caterpillar motor power 11KW(Ac frequency conversion )

2.12Corrugation motor power 11KW(Ac servo )

2.13Welding protection gas argon gas or helium gas

2.14Protection gas argon gas 50-80L/H

2.15Working gas pressure ＞0.4Mpa

2.16Central height 1000mm

2.17Installed capacity ＜100KVA

3.Components

3.1Φ3600 portal type pay off	1 set
3.2Driving tape pay off	1 set
3.3Tape Pay off tension speed control device	1 set
3.4Tape connecting machine	1 set
3.5Welding platform	1 set
3.6Inlet Tape positioning device	1 set
3.7Precision Cutter device	1 set
3.8Outlet tape positioning device and tape straightening device	1 set
3.9Waste edge collecting device	1 set
3.10Precisiong wheel type forming device	1 set
3.11Welding die stand and sizing device	1 set
3.12Straight shank welding gun	1 set
3.13Circle Cooling system Welding gun	1 set
3.14Three-dimensional adjust device for gun	1 set
3.15Welding arc monitoring device	1 set
3.16Argon arc Welding machine	1 set
3.17Air supply adjust system	1 set
3.18Lubrication	cooling and blow device for welding , 1 set
3.193000kg flat belt caterpillar	1 set
3.20Eccentric type corrugation device , 1 set	1 set
3.21Lubrication cooling device for corrugation
3.22Cleaning and blow system	1 set
3.23Φ3600 portal type take up with traverse	1 set
3.24Electrical control system	1 set

4.Technical specification for main components

4.1Φ3600 portal type pay off(Top clamping)

4.1.1Suitable reel size PN2500～PN3600mm

4.1.2Cable OD ≤Φ180mm

4.1.3Max loading ≤25t

4.1.4Portal moving type pay off with automatic centering function.

4.2 Driving tape pay off

4.2.1Pay off reel OD Φ1600mm

4.2.2Max loading 5000kg

4.2.3Tape pay off motor 3kW(AC)

Driving tape pay off, pay off adopt AC motor,control by Siemens Driver

4.3Tape Pay off tension speed control device

Structure: adopt swing arm and heavy punch type balance weighting, potentiometer control tape pay off speed. Change the tape tension through changing the balance weighting position.

5.Other
- Machine direction: From Left to Right,face to machine, left is pay off and right is take up.
- Color code: main machine(RAL5015),rotating parts(RAL2004),electrical cabinet(RAL7032).

Supply 2 set of die
