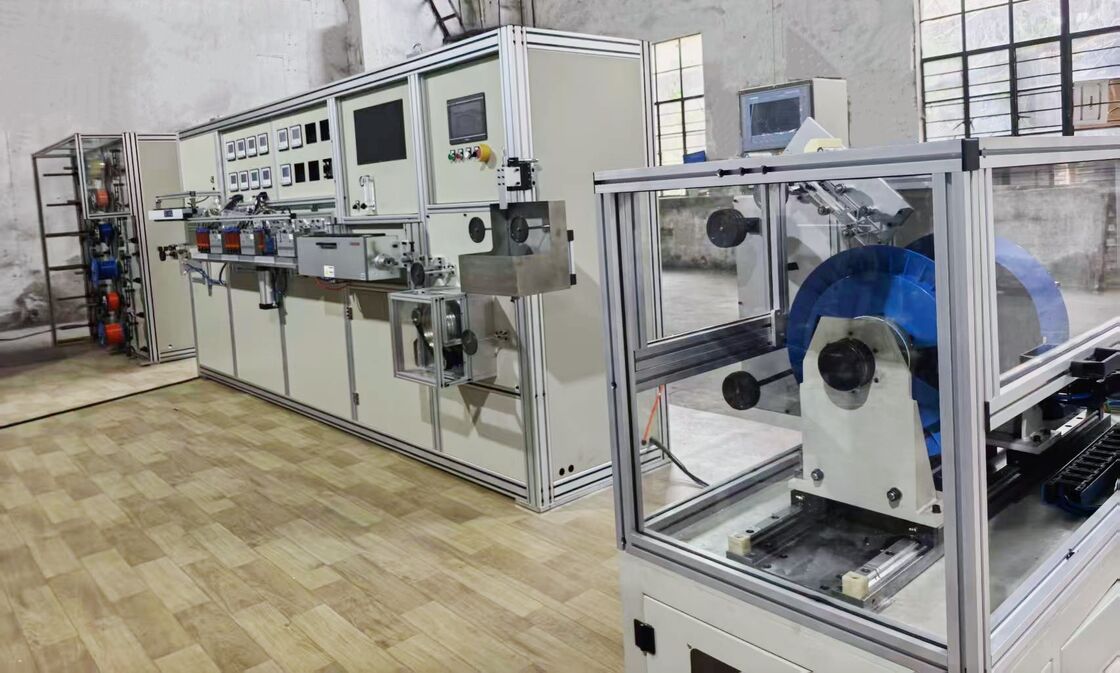

Spider Web Optical Fiber Ribbon Production Line

Spider Web Optical Fiber Ribbon Production Line

1. Application

This production line is mainly used for producing spider web optical fiber ribbon with 6 cores or within 12 cores. Programmable bonding patterns and barcode printing (identify ribbon).

2. Main technical data

2.1 Structure speed 500m/min

2.2 Production speed 260m/min

2.3 Fiber pay-off reel size Φ236×Φ160×108mm

                                          Φ236×Φ160×235mm

                                           Shaft hole Ф25.4mm

                                           Reel weight 10kg

2.4 Fiber take-up reel size

     Reel outer diameter 410mm

    Reel width 391mm

   Shaft hole diameter 50.8mm

   Reel weight 20kg

2.5 Metering accuracy ≤1‰

2.6 Take-up tension can adjust separate, 1N~10N, allowable error is ±0.05N

2.7 Traverse pitch adjustable, range is 0.1-5.0mm, accuracy is 0.01mm

2.8 Additional attenuation ≤0.02dB/km (at 1310 and 1550 nm)

2.9 Nitrogen purity ≥99.99%

2.10 Air pressure 0.5MPa

2.11 Operation temperature 20～25℃

2.12 Length of line 9m

2.13 Line color appointed by buyer

2.14 Line direction appointed by buyer

2.15 Voltage appointed by buyer

3. Line Configurations

3.1 12 spools optical fiber pay-off

3.2 Fiber guider and die adjustment platform

3.3 Resin feeding system

3.4 Gap glue dispensing system

3.5 UV curving device including electrical control system

3.6 Glue dispensing monitoring system

3.7 Inkjet printer support frame

3.8 Capstan

3.9 Take-up with traverse

3.10 Electrical control system
