Product Details:
Payment & Shipping Terms:
|
| Product Name: | CNC High-speed Circular Saw Machine | Type: | Circular |
|---|---|---|---|
| Usage: | SAW | Color: | Picture |
| Size: | 7000*2300 | Power: | Motor |
| High Light: | automatic horizontal band saw,auto feed bandsaw |
||

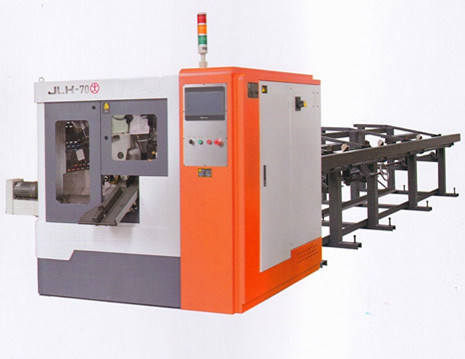

CNC high-speed circular saw machine
type70
Keep working 24 hours
Digital monitoring control panel / easy to operate
AC servo motor, automatic feeding size precision
Multi -functional special hard blade
STANDARD CONFIGURATION
1. Man -machine interface operating system
2. PLC control and hydraulic functions
3. Hydraulic font clamp and pressure
4. Floating pliers feeding device
5. Pneumatic trough
6. Butterfly brake device
7. Hydraulic power cleaning steel brush
8. Automatic feeding rack , suitable for bar
9. Scraper -type automatic cleaning machine
10. Air gun one
11. Working lights
12. Tools and a set of tools
type85
Keep working 24 hour
Digital monitoring control panel/ easy to operate
AC servo motor, automatic feeding size precision
Multi- functional special hard blade
OPTIONAL DEVICE
1. oil mist fillter
2. Air compressor
3. Clamp deconpession device
4. Pipe cutting with the wind device
CNC HIGH-SPEED CIRCULAR SAW MACHINE
type85
|
Cutting Capacity |
Round | mm | 15-17href="#/javascript:;" wall thickness>5 | 15-85 wall thickness>5 |
| Square type | mm | 15-55 wall thickness>5 | 15-65 wall thickness>5 |
|
HEAD SPINDLE |
Use TCT super hard circular saw blades | mm | ø285*t2.0 |
ø315*t2.3 |
|
| Spindle motor | kw | 7.5 | 7.5 | ||
| Spindle speed | rpm | 20-180 | 20-170 | ||
| Cut feed mode | AC servo motor +ball Roller liner guide | ||||
| Main clamp way | Hydraulic type vertical and horizontal camp of each group | ||||
| Saw blade debris removal device | Passive round wire brush / Active round wire brush(optional) | ||||
| Gear gap compensation device | Disc brake | ||||
|
FEEDING CLAMPS |
Feeding drive mode | AC servo motor +ball screw | ||
| Feed clam way | Hydraulic clamped | |||
| The material found end removes the length | mm | 10-99(optiona;) | ||
| Material back -end material length | mm | 85+α (α is the not enough to cut the length of a work piece) | ||
| Single feed cut length | mm | 6-680 | 6-680 | |
| Automatic feeding device | Allow the length of material mm | 2000-6500 | 2000-6500 |
| Supply mode | Preloading |
|
Hydraulic Device |
Hydraulic pump type | Variable piston pump | ||
| Hydraulic drive motor | kw | 2.2 | 2.2 | |
| Hydraulic system rated pressure | Mpa | 5 | 5 | |
| Hydraulic oil capacity | L | 90 | 90 | |
| Size and weight | Weight(machine +rack) | KG | 3200 | 3200 |
| Size | L*W mm | 7000*2300 | 7000*2300 |
|
Other Standard equipment |
Saw blade deflection shock device | Tunqsten carbide parallel block |
| Dispenser | Eumatic reciprocating | |
| Tool micro-lubrication system | Quasi-dry intermittent oil | |
| Chip conveyor | Chain plate type continuous or intermittent operation |
|
Optional Devicce |
Centrifugal oil mist recovery machine | Ulti -levelfiltering, energy saving and environmental protection |
| Luster feeding device | The whole bundle of material cutting preferred | |
| Third clamp | The length of material 20+α(α is not enough to cut the length of a workpiece) | |
| Hydraulic wire brush | Active remove of debris | |
| Long material to undertake device (discharge device ) | A variety of ways flexible choic , can be equipped with robots expected code material ) |
FEATURES DESCRIPTION
a. Electrical control part :complies with IEC60624.2005 international standard, neat, clean, safe and reasonable layout, with open door power-off function ,protecting equipment and operator safety .
b. Active wire brush chip removal :hydraulic motor driven with brush , sawdust cleaning more clean,longer service life, more provincial blade.
c. New material design:the use of new design of material to avoid feeding the workpiece friction with the nip surface, to ensure the accuracy of feeding.
d. High - power gear reducer: the use of high -power gear reduce ,high - reliability bearings and high hardness ear to ensure the stability of the blade operation , and extend the life of the blade .
e. Blade guide: blade guide Hollow oil way to ensure that the guide lubrication and stability , to extend blade life ,
f. Sino -foreign joint venture motor :7.5KW 6P Taiwan imported custom motor, stable work, long service life .
