| Name: | Automatic Bandsaw Machine | Type: | SPECIAL |
|---|---|---|---|
| Package: | EXPORT PACKING | Color: | Picture |
| Size: | 4200*4100*2800 | Power: | Motor |
| High Light: | automatic horizontal band saw,auto feed bandsaw |
||

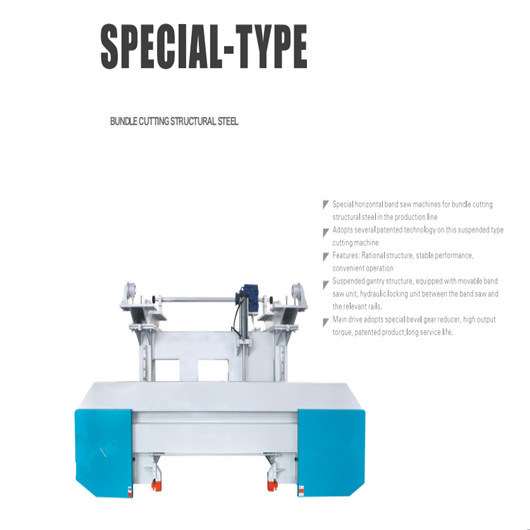

Bandle Cutting Structural Steel Automatic Bandsaw Machine Special For Graphite
Main frame adopts quality steel sheet, high strength bearing machanism design ,stress relief treated through several procedures after welding ,stability and vibration resistance improved.
Copper winding based motor adopted for the precision speed reducing system ,the rational design ensure stability and durability of saw . Band saw’s speed reducing system , a ll transmission parts with strict processing technology , ensure running stability ,cutting efficiency improve as
Life-time Maintenance ,Free Training
Quality warrant 365 days , usage assured .
SPECIAL TYPE BAND SAW
1. Special for continuous casting production line
2. Bundle cutting billets
3. Automatic working ,high efficiency ,narrow saw kerf ,highprecision section
4. Extensively applied in famous companies for copper cutting .
| MODLE | WY12050D | |
| Cutting capacity (mm) | Diameter ø150-2000mm*3 pcs | |
| Blade speed (m/min) | 20-90stepless speed regulation | |
| Blade size (mm)*(L)*(W) | 54*1.6 | |
| Blade tensioning (Manual) | Hand movement | |
| Main drive structure (Worm) | Turbine | |
Motor | Main (KW) | 7.5 |
| Hydraulic (KW) | 2.5/1.5 | |
| Coolant (KW) | 0.12 | |
| Oil Volume | Hydraulic oil (L) | 140 |
| Coolant(L) | 50 | |
| Size (mm) (L)*(W)*(H) | 4200*4100*2800 | |
| MODLE | GZ4260/160 | |
| Cutting capacity (mm) | 600*1600 | |
| Blade speed (m/min) | 100-500 infinitely variable speeds | |
| Blade size (mm)*(L)*(W) | 41*1.3mm | |
| Workpiece clamping (hydraulic) | Hydraulic | |
| Blade Tensioning (hydraulic ) | Hydraulic | |
| Main drive structure (Worm) | Gear | |
Motor | Main (KW) | 7.5 |
| Hydraulic (KW) | 1.5 | |
| Servo motor | Saw frame 2KW work table 3KW guide head 0.4KW | |
| Oil Volume | Hydraulic oil (L) | 50 |
| Coolant(L) | 50 | |
| MODLE | WY12050D | |
| Cutting capacity (mm) | Diameter ø150-200mm *3PCS | |
| Blade speed (m/min) | 20-90infinitely variable speeds | |
| Blade size (mm)*(L)*(W) | 54*1.6 | |
| Workpiece clamping (hydraulic) | Hydraulic | |
| Blade Tensioning (hydraulic ) | Hand move | |
| Main drive structure (Worm) | Turbine | |
Motor | Main (KW) | 7.5 |
| Hydraulic (KW) | 2.5/1.5 | |
| Coolant | 0.12 | |
| Oil Volume | Hydraulic oil (L) | 5140 |
| Coolant(L) | 50 | |
