Servo Control Wire Cable Machine Ball Screw Driven Pultrusion Equipment

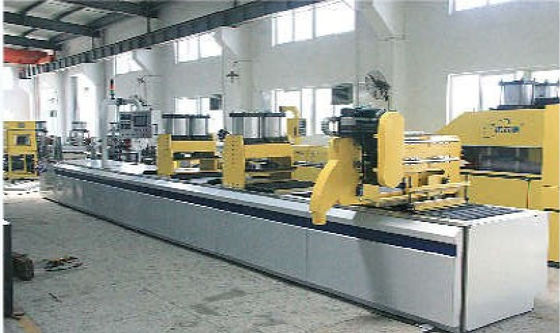

Large Image : Servo Control Wire Cable Machine Ball Screw Driven Pultrusion Equipment

Product Details:

Place of Origin:	CHINA
Brand Name:	HERRMAN
Certification:	CE
Model Number:	NLY

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	1 set per one month
Packaging Details:	export packing
Delivery Time:	20 working days
Payment Terms:	L/C, D/A, D/P, T/T

Contact Now

Detailed Product Description

NAME:

Servo Control Ball Screw Driven Pultrusion Equipment

Application:

Drawing

Model:

Clamp Systrem Model:

Puneumatic Or Hydraulic

Highlight:

cable braiding machine

cable making machine

Servo Control Ball Screw driven Pultrusion Equipment

Servo Pultrusion Mode	NLY-8T	NLY-12T	NLY-25T
Max.Pulling Force (Kgf)≥	8.000	12.000	20.000
Max.Clamping Force (Kgf)≥	8.000	12.000	20.000
Pulling speed range (m/min)	0.1-1.8	0.1-1.5	0.1-1.2
Max.Clamping space (mm*mm)	500*200	1000*250	1200*300
System Motor Power (kw)	5.5*2	7.5*2	11.0*2
Temperature range for die heating (℃)	0-270℃
Precision ℃	±1℃
Exterior Machine size(L/W/H)(m)	9.51.01.9	9.51.51.9	10.01.81.8
Machine Control	PLC&Servo Motor
Clamp Systrem Model	Puneumatic Or Hydraulic

Servo Control Wire Cable Machine Ball Screw Driven Pultrusion Equipment 0
