| Speed: | 350rpm | Steel Wire Dia: | 0.9-1.25mm |
|---|---|---|---|
| QTY Of Wire: | 48 | Motor: | Siemens |
| Warranty: | 12 Months | Usage: | Stranding, Twisting |
| High Light: | wire stranding machine,planetary stranding machine |
||
1250mm Single Twister for Steel Wire Armoring
1. Purpose
Suitable to soft copper conductor or insulated cable to twist, data control and precise winding displacement, to armoring and screen power cable.
Single twister can be used as pay off/take up or a separate single twisting take up. Two machines can run on the same wire. This structure is similar to two separate production line to ensure the high efficiency production.
It can twist same direction wires in one time or twist opposite direction in several time.
High strength and compact rotor are fixed on the frame by bearing supporting rotation.
Load and unload bobbin adopt hydraulic pressure and mechanical platform.
Vector frequency controller control AC motor.
Soundproof safety device to ensure low noise degree.
Operation area is easy to approach to operate and maintenance.
3. Equipment composition
| No | Name | Specification | Qty. | Function | Remarks | |
| 1 | Barrel type pay off |
48 heads |
Pay off wire | |||
| 2 | Motorized back-twist pay off | 1250mm | 1 pc | Pay off wire | ||
| 3 | 48 heads steel wire assemble hole die seat stand | 60mm | 1 set | Inlet line | ||
| 4 | Rotating stand | 1 set | ||||
| 5 | Single twister (single pitch) | Φ1250mm | 1pc | Twisting cable | ||
| 6 | Main control cabinet | 1pc | Control whole machine | |||
| 7 | Coating: color code provided by the client | |||||
| 8 | Operation direction: Face to machine, Left is pay-off, Right is take-up: | |||||
| 9 | Voltage: 3phases, 5 wires, 415v, 50Hz, | |||||
| 10 | All rotate parts need safe protection cover. | |||||
Brand of main accessories:
4.1. AC Motor: Germany SIEMENS
4.2. Inverter: Germany SIEMENS
4.3. PLC: Germany SIEMENS S7-1200, with Advantech Industrial PC
4.4. Bearing: Adopt Japanese NSK
4.5. Low voltage electric components: Sch
5.11. Electric control part.
5.11.1. Color touch panel: it operates by Advantech Industrial PC
5.11.2. Design and wiring of the electric control box.
5.11.3. Low voltage electric components: Schneider brand.
5.11.4. Action indicate content:
a. Main motor ON.OFF switch and indicator light.
b. Running indicator light of main motor
c. Wire-broken stop indicate
d. Meter reached will be stop
e. Lighting control inside machine
f. System digital control.
g. It can work single-handedly or with twister
h. PLC console (Siemens S7-1200)
i. Rotation encoder(Omron)
j. Length counter model: length counter in machine and display in touch panel
k. It warns to stop working if it products with in the fixed length
l. Limited position of safe operation
5.12. Spare parts:
5.12.1. Carbon brush: big 5 pcs, small 5pcs
5.12.2. Tool box + tool: 1BOX
5.12.3. Fuse: 5PCS
5.12.4. Straight screwdriver: 1pc
5.12.5. Cross screwdriver: 1pc.
5.12.6. Adjustable wrench: 1pc

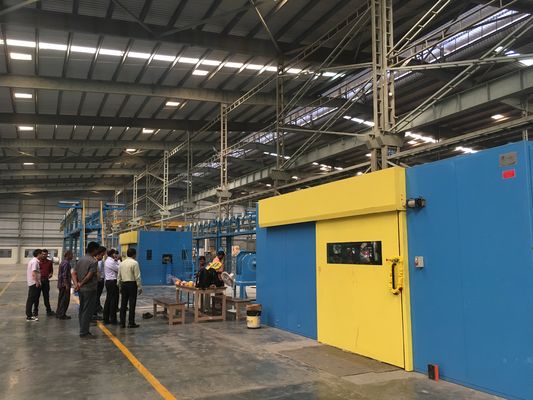

Machine pictures for reference
