| Product Name: | Optical Fiber Secondary Coating Line For Oil-filled Fiber | Extra-attenuation: | ≤0.02dB/km |
|---|---|---|---|
| Line Sspeed: | 800n/min | Extruded Tube Dia.: | (Ф1.0-Ф6.0)mm±0.05 |
| E.F.L Range: | 0~0.3% | Optical Fiber Number: | 12PCS, 24PCS |
| High Light: | optical fiber cable manufacturing machinery,optical cable production line |
||

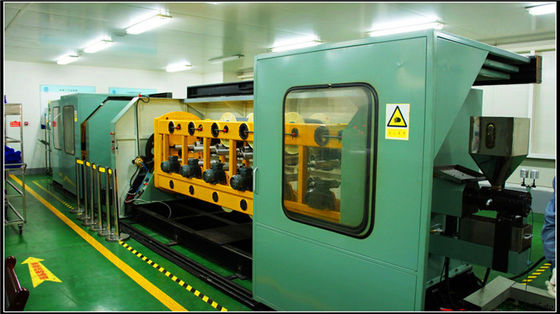

Optical Fiber Secondary Coating Line For Loose Tube 2 - 12 Optical Fibers with PE, PBT
Application
the optic fiber cable secondary coating machine mainly applied in the extrusion of 2-24 cores oil-filled fiber or 4-12*12 cores fiber loose tube,and the extrusion of ¢1.6mm-4.0mm optical fiber fillers.
Consisted of:
24 Optical fiber pay-off, Jelly degassing and filling device(vacuum type) ,. Extruding group 50mm, Hot water trough and hot water tank,.Φ800 over-length capstan, Cooling trough and chiller, Blowing dryer , Diameter gauge, Wheel capstan dancer of over-length control, Wheel capstan haul-off, Take-up dancer, Ф800mm Dual automatic take-up, Electrical control system (PLC+ touch screen)
Main Technical Data
| Type |
HM05 | HM06 |
Optical fiber number |
12 | 24 |
| Pay-off tension | (0.4-1.2N)±0.05N | (0.4-1.2N)±0.05N |
| Optical fiber reel size | 25km/50km reel | 25km/50km reel |
| Line structure speed | 450m/min | 800m/min |
| Operation speed | 20~350m/min (Ф1.8) | 600m/min (Ф1.8*0.3mm, 6-fiber, without SZ device) |
| Extruded tube dia. | (Ф1.8—Ф4.0)mm±0.05 | (Ф1.0-Ф6.0)mm±0.05 |
| Take up reel size | PN800mm | PN800mm, PN630 |
| E.F.L range | 0~0.3% | 0~0.3% |
| Extra-attenuation | ≤0.02dB/km | ≤0.02dB/km(1310nm,1550nm) |
