800RPM Electromagnetic Cable Production Line 6~30mm Paper Wrapping Machine

China Anhui Herrman Machinery Technology Co.,ltd certification
We visited HERRMAN and were positively impressed on the good workmanship and wish HERRMAN to continue along the lines of doing business so far.

—— Mr. Vipul from Sterlite

We bought many machines from Herrman Group and We understand that a decent quality has been reached and hope continuous efforts to make good machines.

—— Mr. Rajurkar from Poly Cab

It's really enjoyable experience for coopetaion with Herrman Team. They are making good quality machines as well as with professional commercial issue

—— Mr. Kotadia from Nexans QICC

Herrman is a company with high reputation. They have a very good after-sale service team. You can always get timely and positive feedback from them.

—— Mr. Mahesh from Havells

Herrman proved to be very helpful, skilled, resourceful and flexible in finding solutions.We plan to do another extension in cooperation this year.

—— Mr.Frank Maczak from TK Dixi

Our equipment people and production people are quite happy with the workmanship of the machine supplied by Herrman. Please maintain that level. Thanks

—— Mr.Suren Shah from WTEC

I'm Online Chat Now

800RPM Electromagnetic Cable Production Line 6~30mm Paper Wrapping Machine

800RPM Electromagnetic Cable Production Line 6~30mm Paper Wrapping Machine
800RPM Electromagnetic Cable Production Line 6~30mm Paper Wrapping Machine 800RPM Electromagnetic Cable Production Line 6~30mm Paper Wrapping Machine 800RPM Electromagnetic Cable Production Line 6~30mm Paper Wrapping Machine 800RPM Electromagnetic Cable Production Line 6~30mm Paper Wrapping Machine

Large Image :  800RPM Electromagnetic Cable Production Line 6~30mm Paper Wrapping Machine

Product Details:
Place of Origin: China
Brand Name: Herrman
Certification: ISO , CQC , SGS , CE
Model Number: 4x/8x/12x
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: To be packed in containers directly without packing and be fixed by steel rope. Suitable for long distance sea-transportation and well protected against change of climate, moisture and shock.
Delivery Time: 3 months after receit of down payment
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10 sets per month
Detailed Product Description
Width/Thickness Ratio: 0.4-12 Max Rotating Speed: 800RPM
Line Speed: 8-16 M Motor: Siemens
Paper Width: 6~30mm Thickness: 0.040~0.125mm
High Light:

wire production equipment

,

electric wire machine

High Speed Wire Production Line Electromagnetic Cable Paper Wrapping Machine



1. Application



This machine is mainly used for making the paper taping for transformer wire and cable.

Our Paper Taping Machine has high speed with invariablenes tension.

It's according to the request of transformer manufactory for improving the quality of the paper wrapping strip.



2. Main Specifications



Production Range 10~80mm2
Width / Thickness Ratio 0.4-12
Paper size Width 6~30mm Thickness 0.040~0.125mm
Max rotating speed 800RPM
Actual max working speed 600RPM
Linear speed 8-16 m
Diameter of taping head External diameter at 350mm, internal diameter at 75mm
Range of paper wrapping pitch 8~32mm
Breaking detector theory with optical electrical Kraft break detector
Electrics SIEMENS or OMRON
Transducer Mitsubishi



3. Main Components of the machine:



Meter measuring device

Take up

Electrical control

Pay off Stand

Straightening device

Tapping head

Caterpillar

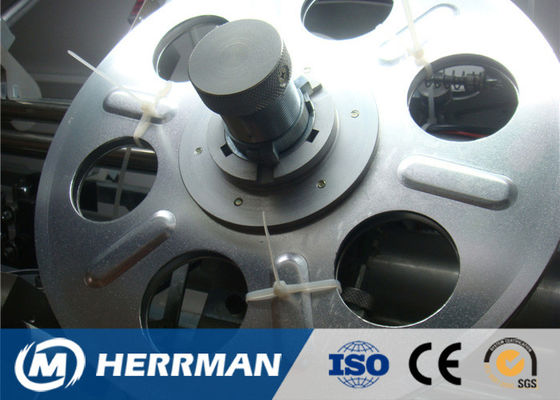

4. Picture for reference



800RPM Electromagnetic Cable Production Line 6~30mm Paper Wrapping Machine 0
