Product Details:
Payment & Shipping Terms:
|
| Production Range: | 10~80mm2 | Line Speed: | 8-16 M |
|---|---|---|---|
| Color: | Customerized | Motor: | Siemens |
| Max Rotating Speed: | 800RPM | Actual Max Working Speed: | 600RPM |
| High Light: | wire production equipment,electric wire machine |
||
Paper Wrapping Machine Wire Production Line Transposed Wire And Cable
1. Main Technical Specification
| Production Range | 10~80mm2 |
| Width/Thickness Ratio | 0.4-12 |
| Paper size | Width 6~30mm Thickness 0.040~0.125mm |
| Max rotating speed | 800RPM |
| Actual max working speed | 600RPM |
| Line speed | 8-16 m |
| Diameter of taping head | External diameter at 350mm, internal diameter at 75mm |
| Range of paper wrapping pitch | 8~32mm |
| Breaking detector theory | with optical electrical Kraft break detector |
| Electrics | SIEMENS or OMRON |
| Transducer | Mitsubishi |
2. Introduction
This machine is use for making the paper taping for transformer wire.
It's according the request of transformer manufactory for improve the quality of the paper wrapping strip. Our Paper Taping Machine has high speed with invariablenes tension.
3. Main Parts:
Caterpillar
Meter measuring device
Take up
Electric control
Pay off Stand
Straightening device
Tapping head

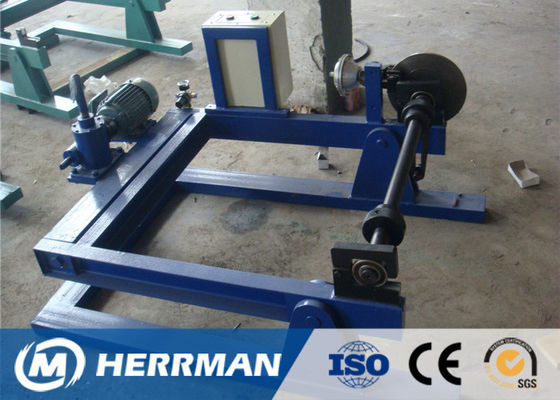

4. Picture for reference
