Premise Cable Machine Fiber Optic Cable Production Line Stranding Sheathing

Premise Cable Machine Fiber Optic Cable Production Line Stranding Sheathing
Premise Cable Machine Fiber Optic Cable Production Line Stranding Sheathing Premise Cable Machine Fiber Optic Cable Production Line Stranding Sheathing

Large Image :  Premise Cable Machine Fiber Optic Cable Production Line Stranding Sheathing

Product Details:
Place of Origin: China
Brand Name: Herrman
Certification: ISO , SGS , CE , CQC
Model Number: Sheathing , SZ Stranding
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: By Negotiation
Packaging Details: To be packed in containers directly without packing and be fixed by steel rope. Suitable for long distance sea-transportation and well protected against change of climate, moisture and shock.
Delivery Time: within four month after receipt of down payment
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 30 sets per month
Detailed Product Description
Application: Premise Cable Machine: SZ Stranding And Sheathing
Bearing: NSK PLC: Siemens
Motor: Siemens Or China Famous Brand Inverter: Siemens
High Light:

fiber optic cable equipment

,

optical cable production line

Premise Cable Machine Fiber Optic Cable Production Line Stranding Sheathing



1. Application



SZ Stranding: The line is mainly used to produce simplex cable , duplex cable and the distribution cable which has the cores 2~12 fibers.



2. SZ Stranding



Diameter of tight optic fiber 0.6mm,0.9mm
Diameter of premise cable 1.8-6.2mm
Line speed ≤60m/min(dia.6.2mm,PVC)
Size of tight fiber reel 235mm,400mm
Stranding angle 0~±6
Stranding pitch 80~400mm
Aramid cops no. 12cops
Extruder SJ65
Size of take up reel PN630mm~PN1000mm




3. Usage



Sheathing: This line is mainly used to strand 12 cores of simplex cables or tight coated fibers. After stranding, the cables / fibers are coated with aramid yarn then be sheathed with LSZH , PVC ,TPU



4. Sheathing



Simplex cable diameter 2.0mm
Tight buffer fiber diameter 0.9mm
Number of fiber pay off 12
Structure speed of stranding machine 80rpm
Working speed of stranding machine 10~50rpm
Stranding pitch 20~800mm
Extruder SJ65X25

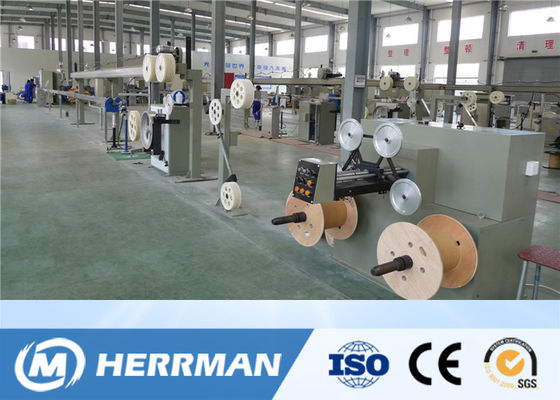

5. Picture for reference



Premise Cable Machine Fiber Optic Cable Production Line Stranding Sheathing 0
