Premise Cable Machine Fiber Optic Cable Production Line Optical Fiber Cable

Name: Premise Cable Machine Fiber Optic Cable Production Line Optical Fiber Cable
Brand: Herrman
SKU: SZ Stranding, Sheathing
Rating: 4.6 (175 reviews)

Large Image : Premise Cable Machine Fiber Optic Cable Production Line Optical Fiber Cable

Product Details:

Place of Origin:	China
Brand Name:	Herrman
Certification:	ISO , SGS , CE , CQC
Model Number:	SZ Stranding, Sheathing

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	By Negotiation
Packaging Details:	To be packed in containers directly without packing and be fixed by steel rope. Suitable for long distance sea-transportation and well protected against change of climate, moisture and shock.
Delivery Time:	within four month after receipt of down payment
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	30 sets per month

Contact Now

Detailed Product Description

Inverter:	Siemens	Application:	Premise Cable
Machine:	SZ Stranding And Sheathing	Motor:	Siemens
Bearing:	NSK	PLC:	Siemens
High Light:	optical fiber cable manufacturing machinery , optical cable production line

Premise Cable Machine Fiber Optic Cable Production Line Optical Fiber Cable

1. Application

SZ Stranding: The line is mainly used to produce simplex cable , duplex cable and the distribution cable which has the cores 2~12 fibers.

Sheathing: This line is mainly used to strand 12 cores of simplex cables or tight coated fibers. After stranding, the cables / fibers are coated with aramid yarn then be sheathed with LSZH , PVC ,TPU

2. Technical Specification

SZ Stranding

Diameter of tight optic fiber	0.6mm,0.9mm
Diameter of premise cable	1.8-6.2mm
Line speed	≤60m/min(dia.6.2mm,PVC)
Size of tight fiber reel	235mm,400mm
Stranding angle	0~±6
Stranding pitch	80~400mm
Aramid cops no.	12cops
Extruder	SJ65
Size of take up reel	PN630mm~PN1000mm

Sheathing

Simplex cable diameter	2.0mm
Tight buffer fiber diameter	0.9mm
Number of fiber pay off	12
Structure speed of stranding machine	80rpm
Working speed of stranding machine	10~50rpm
Stranding pitch	20~800mm
Extruder	SJ65X25

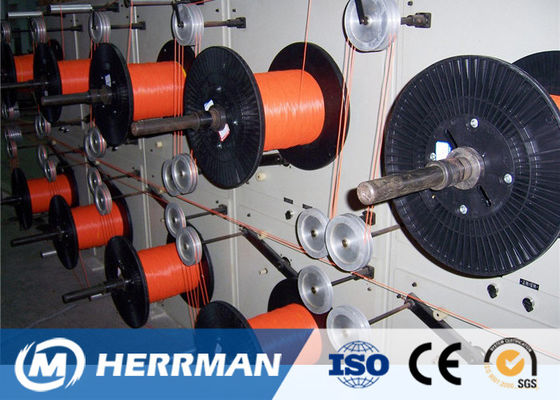

3. Picture for reference
