SZ Stranding Line Fiber Optic Cable Production Line Optical Fiber Cable

SZ Stranding Line Fiber Optic Cable Production Line Optical Fiber Cable
SZ Stranding Line Fiber Optic Cable Production Line Optical Fiber Cable SZ Stranding Line Fiber Optic Cable Production Line Optical Fiber Cable SZ Stranding Line Fiber Optic Cable Production Line Optical Fiber Cable SZ Stranding Line Fiber Optic Cable Production Line Optical Fiber Cable

Large Image :  SZ Stranding Line Fiber Optic Cable Production Line Optical Fiber Cable

Product Details:
Place of Origin: China
Brand Name: Herrman
Certification: ISO , SGS , CE , CQC
Model Number: SZ
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: By Negotiation
Packaging Details: To be packed in containers directly without packing and be fixed by steel rope. Suitable for long distance sea-transportation and well protected against change of climate, moisture and shock.
Delivery Time: within four month after receipt of down payment
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1 set per month
Detailed Product Description
Structure Speed: 100m/min Sz Strand Head Speed: Max. 2000rpm
Binding Head Speed: Max. 4000rpm Binding Pitch: 15 - 50mm
Stranding Pitch: 50 - 200mm Application: Optical Cable
High Light:

fiber optic cable equipment

,

optical cable production line

SZ Stranding Line Fiber Optic Cable Production Line Optical Fiber Cable



1. Application



The machine is mainly used for stranding optical fiber cable.



The use of fiber-optic cable is continuously increasing. To respond to the various technology requirement, we have developed a wide range production lines. The line is used for SZ stranding of loose tube elements 2-4.5mm



2. Technical Specification



Loose tube dia./number of tube 1.5-6.0mm/12
Structure speed 100m/min
Cable making speed(binding pitch=25mm)(stranding pitch=65) 90m/min
SZ stranding angle ±4~±18
SZ stranding head speed(max) 2000rpm
Binding head speed max. 4000rpm
Binding pitch 15-50mm
Stranding pitch 50-200mm
Fiber loose tube pay off reel size PN630-PN800
Accuracy of the counter 0.2%

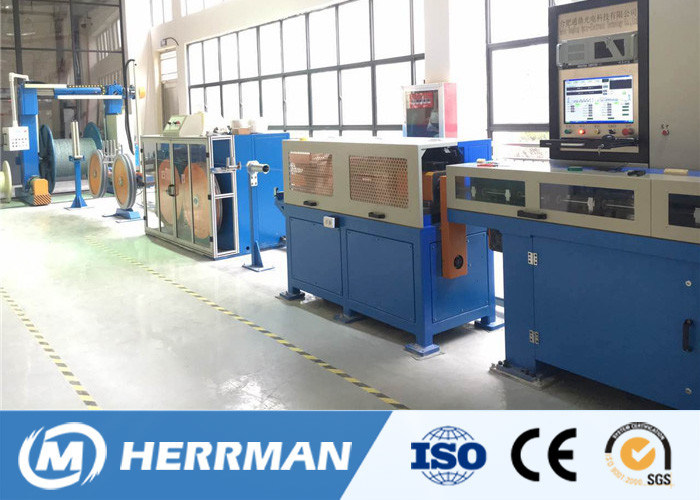

3. Pictures for reference



SZ Stranding Line Fiber Optic Cable Production Line Optical Fiber Cable 0
