Product Details:
Payment & Shipping Terms:
|
| Application: | FTTH Cable | Line Speed: | 200m/min (structure) |
|---|---|---|---|
| Optic Fiber Dia.: | 0.25 ± 0.05mm | Take Up: | PN400 -PN800 |
| Wire Reel: | PN400 - PN800 | FRP Reel: | PN235 , PN400 ,PN500 |
| High Light: | fiber optic cable equipment,optical cable production line |
||
FTTH Cable Fiber Optic Cable Production Line Optical Fiber Wire And Cable
1. Application
The line is mainly used to produce 1-4 fibers FTTH cable . The material :LSZH or PE .
2. Technical Specification
| Opti fiber dia. | 0.25±0.05mm |
| Size of FTTH cable |
2.0*3.0mm±0.2mm 2.0*5.0mm±0.2mm 2.0*6.9mm±0.2mm |
| Line speed | 200m/min(structure) |
| Size of fiber pay off reel |
236x25.4x108 265x25.4x180 |
| Size of take up reel | PN400-PN800 |
| Size of wire reel | PN400-PN800 |
| Size of FRP reel | PN235,PN400,PN500 |
3. Electric Control system
The equipment adopts industrial computer and programmable logic control(that is IPC+PLC mode) to realize the line’s synchronal running and the independent operation. The production operation and the parameter set and display are carried out through the industrial computer, which isn’t involved with the control directly. The production state collection and progress control are realized on PLC, such as the motor start-up and stop, the given signal, the motor speed and so on. The computer communicates with PLC, which can realize the production operation, the warning display, the line’s emergency and other functions.

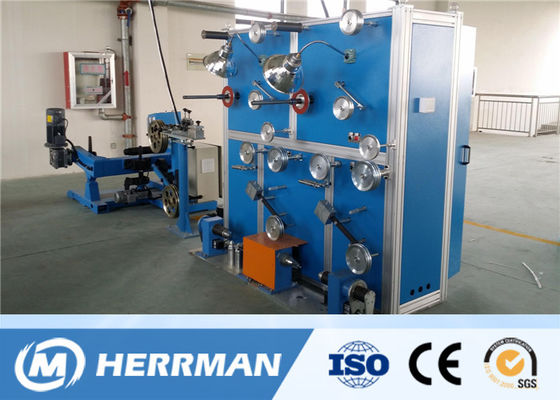

4. Picture for reference
