| Product Name: | High Speed Horizontal Taping Machine For Ffire Resistance Cable | Application: | Submersible Cable, Fire Resistance Cable |
|---|---|---|---|
| Conduct: | 1mm ~ 4.0mm | Tape Material: | Mica Tape, PTFE Tape, BOPP, Mylar Tape, Polyimide Tape, Polyester Film, Nomex, Kapton Tape |
| Payoff: | DIN400-630mm | Take Up: | DIN400-630 |
| High Light: | fiber optic cable equipment,cable making machine |
||
High Speed Triple Layer Concentric Taping Machine Speed Up To 2200RPM
Application for Winding wires such as submersible cable:
Round conductors range: Ø1mm- Ø4mm;
Tape: Mica tape, PTFE tape, BOPP, Mylar tape, Polyimide tape, Polyester Film, Nomex, Kapton etc. tape..
High Speed Triple Layer Concentric Taping Machine Description:
Payoff DIN400-630
High speed concentric taping machine
Dual wheel capstan
Takeup DIN400-630
PLC control system with color touch screen
Advanced function (Optional):
High speed pad type tape or high capacity bobbin type tape
Different Payoff and takeup
Electro magnetic clutch or Hystereisis clutch
Serve motor with serve controller
Remote Diagnostic Facility
Testing equipment such as laser gauge, spark tester etc.
High Speed Triple Layer Concentric Taping Machine Features:
1. Payoff DIN 400-630
2. Horizontal taping machine
PLC control system, operated by touch screen.
Bi-directional for each tape head rotation.
Speed up to 2200RPM.for Pad type tape, 1800RPM for spool type tape.
Special design for tape, pad type or spool type tape both available.
Each taping head driven by individual motor and inverter, ensure constant pre-set tape tension from start to end of the tape spool regardless of its size.
Special design for roller, avoid tape deformation, coat wire close and smooth, ensure product stabilized performance and superior consistency
3. Capstan
4. Takeup DIN 400-630
5. PLC control system with color touch screen
Monitor taping process such as Line speed, batch count, tape tension, taping overlap etc.
Clockwise or anti-clockwise taping rotation
Increase / decrease tape head speed
Wire broken detectors.
Tape broken detectors
Alarm and Recipe system.
Main Technical Data
| Model | Pad type/ Bobbin type |
| Suitable materials | Mica tape, Teflon tape, BOPP, Mylar tape, Polyimide tape, cotton paper |
| Rotate speed | MAX2200rpm, or customized |
| Structure | Vertical / horizontal |
| Round cable | Ø1mm- Ø4mm; |
| Taping direction | S/Z (Bi-directional head rotation) |
| Taping pitch | overlap 0~67%, program setting |
| Tension element | Electro-Magnetic clutch / Hysteresis clutch (optional) |
| Control system | PLC automatic control system + HMI color touch screen |
| Taping driving | Frequency inverter motor/ Servo motor (optional) |

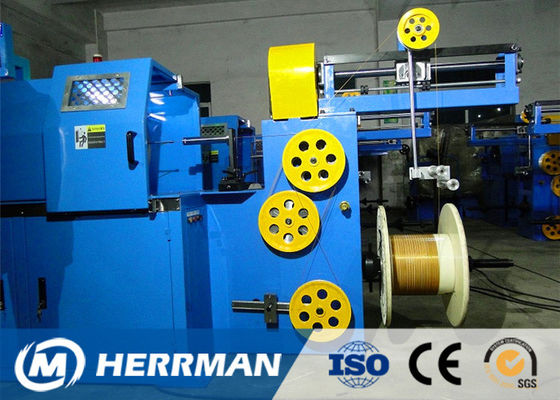

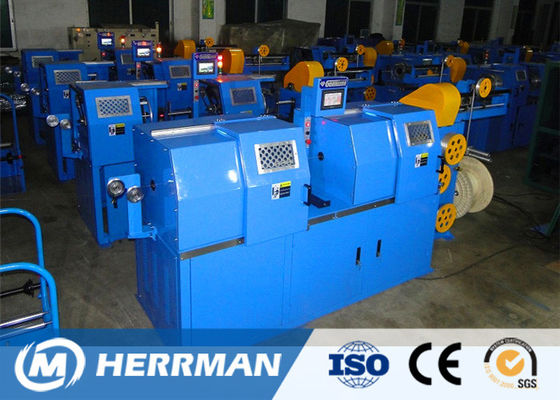

Machine Photo
