Drum Twister Lay Up Machine With Caterpiller For Energy / Telephone Cable

Drum Twister Lay Up Machine With Caterpiller For Energy / Telephone Cable
Drum Twister Lay Up Machine With Caterpiller For Energy / Telephone Cable Drum Twister Lay Up Machine With Caterpiller For Energy / Telephone Cable Drum Twister Lay Up Machine With Caterpiller For Energy / Telephone Cable Drum Twister Lay Up Machine With Caterpiller For Energy / Telephone Cable

Large Image :  Drum Twister Lay Up Machine With Caterpiller For Energy / Telephone Cable

Product Details:
Place of Origin: China
Brand Name: Herrman
Certification: CE, UL, GS, SGS, TUV, ISO
Model Number: 1600MM - 4500MM
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: By Negotiation
Packaging Details: EXPORT PACKING
Delivery Time: 122 DAYS
Payment Terms: L/C, D/A, D/P, T/T or By Negotiation
Supply Ability: 10 SETS PER MONTH
Detailed Product Description
Product Name: Drum Twister Cabling Machine With Caterpiller For Energy Cable And Telephone Cable Application: Energy Cable And Telephone Cable
Tape Material: Plastic Tapes, Aluminum Or Copper Foil Tape, Or Steel Tape, Polyester Tape, Non-woven Tapes, Glass Tapes, Semiconductor Tapes Shapes: Round, Straight Sector, Pre-spiralled Sector,
Line Speed: 100m / Min Cable Diameter: 200mm
High Light:

cable braiding machine

,

cable making machine

Drum Twister Cabling Machine with Caterpiller for Energy Cable and Telephone Cable




Application



Drum twister cabling machine is mainly used for twisting large section and long length power cable, making round or sector core stranding process, also can used for armoring steel wire or copper shield, as well as the Energy Cable and Telephone Cable.



Specification



Line components driven by independent motorsWide range of rotating fork type payoff for reels from Ø 1,250 mm to Ø 2,800 mm



Payoffs for armouring/screening process from coils/baskets or reel



Wire tension kept constant from full to empty pay off reel



Motorized pintles for rotating pay off and take up units



Full range of taping heads for plastic, copper, aluminum and steel tapes with different size pads, tape widths and thicknesses



Hydraulic lifting platform and motorized trolley for reel loading/unloading





Main Technical Data



Take Up Reel Size Drum O.W. (mm) Loading capacity(t) Max. rotation speed of drum twister
2000 1500 8 60
2200 1700 10 60
2500 1900 12 50
3150 2300 15 40
3500 2300 25 30
3600 2300 25 30
4000 2400 30 20
4200 2400 30 20





Machine Drawing

Drum Twister Lay Up Machine With Caterpiller For Energy / Telephone Cable 0

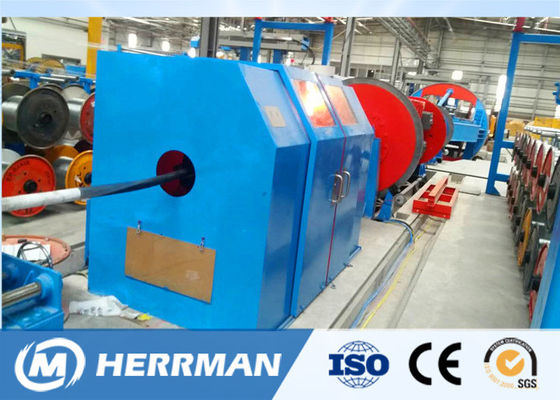

Machine Photo

Drum Twister Lay Up Machine With Caterpiller For Energy / Telephone Cable 1
