Aerospace Normal Copper Wire Twisting Machine , Single 0.08 - 0.45mm Wire Making Machine

China Aerospace Normal Copper Wire Twisting Machine , Single 0.08 - 0.45mm Wire Making Machine supplier
Aerospace Normal Copper Wire Twisting Machine , Single 0.08 - 0.45mm Wire Making Machine supplier Aerospace Normal Copper Wire Twisting Machine , Single 0.08 - 0.45mm Wire Making Machine supplier Aerospace Normal Copper Wire Twisting Machine , Single 0.08 - 0.45mm Wire Making Machine supplier

Large Image :  Aerospace Normal Copper Wire Twisting Machine , Single 0.08 - 0.45mm Wire Making Machine

Product Details:

Place of Origin: China
Brand Name: Herrman
Certification: CE, UL, GS, SGS, TUV, ISO
Model Number: 500mm - 2000mm

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: By Negotiation
Packaging Details: EXPORT PACKING
Delivery Time: 95 DAYS
Payment Terms: L/C, D/A, D/P, T/T or By Negotiation
Supply Ability: 10 SETS PER MONTH
Contact Now
Detailed Product Description
Product Name: Automatic Copper Wire Cable Twisting Buncher Machine Application: Ulti Strand Copper Wire, Aluminum Wire, Tinned Copper Conduct, Data Cable, Lan Cable
Max Twist: 6000tpm Line Speed: 240m/min
Max Speed: 3000rpm Lubrication: Oil Lubricating

Aerospace Normal Copper Wire Twist Machine Single 0.08 - 0.45mm Automatic Wire Twister





Application



It is suitable for the computer traverse, earphone cable, electronic wire, telephone cable, automotive wire, network cable and PVC wire copper to twist.



Technical parameter



It has been developed to produce very accurate strands with very small sections for the electronic industry. Simultaneously produce two different strand sections, on equal or different reels.One motor drive two shafts can be more environmental and power. With the main shaft meter counter, the machine twist the same types of line, and the tolerance is only 0.01%.

Patent No.:201320522156.7



Specifications:



Model 250D 300D 500D 650D
Twisting usage Apply for twisting aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires).
Single wire dia(mm) 0.03-0.18 0.05-0.28 0.08-0.45 0.15-1.04
Stranding section area (mm²) 0.0049-0.30 0.0137-0.45 0.05-2.0 0.35-6.0
Pitch(mm) 0.8-10.8(24zones) 1.6-21.6(24zones) 6.3-52.3(24zones) 11.6-100(34zones)
Direction of lay Free to right or left
Take up bobbin size(mm) 250*30*185 300*30*185

500*56*375

500*127*375

600*56*475

600*127*475

Max rotating speed 3500(7000twist) 3500(7000twist) 3000(6000twist) 2000(4000twist)
Power 3.7KW 5.5KW 7.5KW 11KW
Tension control method Touch screen +PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin
Magnetic powder clutch 0.3kgf 0.6kgf 1.2kgf 5kgf
Protection Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived.
Traversing method Rolling ring drive units, winding pitch and breadth are adjustable
Dimension(mm) 2400L*1750W*1100H 2400L*1750W*1100H 2800L*2250w*1500H 3500L*2850W*1800H

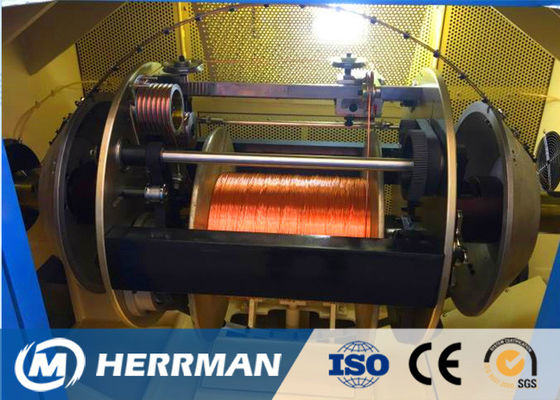

Machine Photo
