High Speed Single Twist Bunching Machine With Concentric Taping Head 1000rpm

China High Speed Single Twist Bunching Machine With Concentric Taping Head 1000rpm supplier
High Speed Single Twist Bunching Machine With Concentric Taping Head 1000rpm supplier High Speed Single Twist Bunching Machine With Concentric Taping Head 1000rpm supplier High Speed Single Twist Bunching Machine With Concentric Taping Head 1000rpm supplier High Speed Single Twist Bunching Machine With Concentric Taping Head 1000rpm supplier

Large Image :  High Speed Single Twist Bunching Machine With Concentric Taping Head 1000rpm

Product Details:

Place of Origin: China
Brand Name: Herrman
Certification: CE, UL, GS, SGS, TUV, ISO
Model Number: 500mm - 2000mm

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: By Negotiation
Packaging Details: EXPORT PACKING
Delivery Time: 99 DAYS
Payment Terms: L/C, D/A, D/P, T/T or By Negotiation
Supply Ability: 10 SETS PER MONTH
Contact Now
Detailed Product Description
Product Name: Single Cabling Twist Machine Inlet Insulation Wire: 1.0mm - 10mm
Finished Dia.: 3mm - 30mm Taping: Concentric Taping Or Longitudinal Taping
Pitch Range: 20-250 Rotation Speed: 1000rpm

Automatic Single Twist Cabling Machine With Taping For LAN Cable



For the production of:



It is suitable for various power wire, CAT 5 and ultra CAT 5 and CAT? 6 data cable,communication cable and other special cable for high speed cabling twist,meanwhile, finish central wrapping.



Single Twist Stranding Lines Description:


● Payoff DIN400-630


● Longitudinal taping head


● Concentric taping head


● Single twist stranding machine DIN630-2000


● PLC control system with color touch screen



Performance:



1. HMI + PLC control system, twisting pitch, production, line speed set on touch screen, alarm and recipe system, easy operation.


2. Wide range for cabling cables, special for LAN cable, USB date cable, control, measuring etc. Equipped with concentric or longitudinal taping unit for shielding purpose.


3. Pitch accurate, electronic tracking pitch, driven via differential unit, pitch can be constant when speed accelerating or decelerating.


4. Self-traversing, traversing and bobbin-holding devices from one complete unit. Traversing unit moves on railway guides via motor, superior quality for twisted cable electrical performance.





Main Technical Data



Model Φ400-Φ500 Φ 630 Φ 800 Φ 1000 Φ 1250
Pay-off bobbin(mm) Φ300-Φ400mm Φ400-Φ500-Φ630 400-Φ500-Φ630 Φ400-Φ500-630 Φ400-Φ500-630
take-up bobbin(mm) Φ500 Φ630 Φ800 Φ1000 Φ1250
Wire diameter(mm) Φ0.5- Φ2.0 (Soft structure) Φ0.6- Φ3.0(Soft structure) Φ0.6-Φ3.0(Soft structure) Φ1.0-Φ5.0 (Soft structure) Φ1.0-Φ5.0 (Soft structure)
Max twsit diameter(mm) Φ6 Φ15 Φ20 Φ25 Φ30
Lay length(mm) 13-80 20-200 30-300 30-350 30-350
Roatte speed(RPM) 850 1000 800 800 500
Take-up tension Auto tension,adjust freely
Traverse method According to bobbin speed reciprocating movement to adjust
Traverse pitch(mm) 2.5-10 2-12 3-20 3-30 3-30

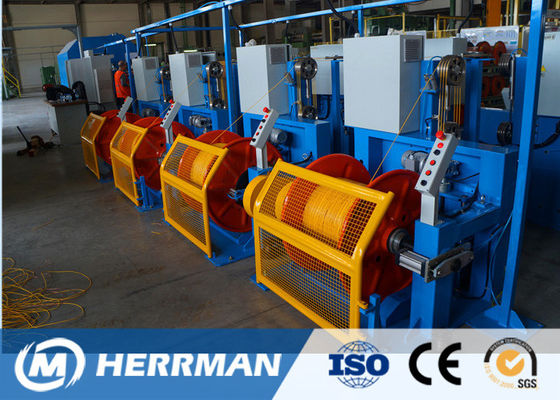

Machine Photo



High Speed Single Twist Bunching Machine With Concentric Taping Head 1000rpm
