| Product Name: | Rubber Continuous Vulcanizing Cable Extrusion Line | Application: | For LV, MV, HV And EHV Cables |
|---|---|---|---|
| Max.extruding Speed: | 40m/min | Max. Output: | 150+550+380kg/h |
| Dia. Before Extruding: | 5mm - 90mm | Dia. After Extruding: | 30mm - 110mm |
| High Light: | wire extrusion machine,rubber extrusion line,Catenary Type Cable Extrusion Machine |
||

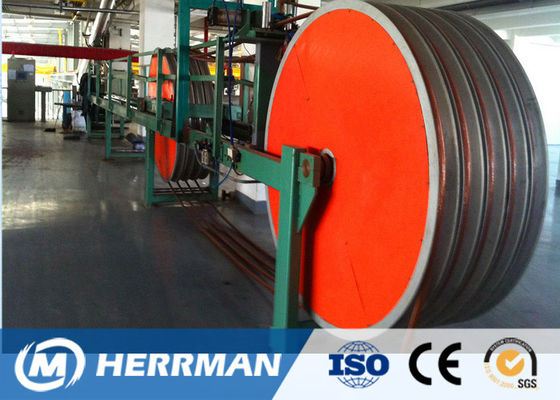

Steam Horizontal Rubber Continuous Vulcanizing Line With Catenary Type
Main Feature
This line is a special machine for the purpose of rubber wire and cable’s insulating, sheathing as well as for the continuous vulcanizing. The rubber material include natural rubber, SBR, CR, NBR, EPR, CPE, CSP and so on. The cable can be used in mining, marine etc.
The main emphasis of our product range is placed on the production of cores and sheathing, rubber insulated cores and conductors, as well as CV lines for medium and high voltage cables.
Main Technical Specification
| ITEM | XJ-90/16 | XJ-120/16 | XJ-150/16 | XJ-65/14+XJ-90/16 | XJ-90/16+XJ-120/16 | XJ-65/16+XJ-120/16+XJ-90/16 | XJ-90/16+XJ-150/16+XJ-120/16 |
| Dia. before extruding (mm) | Φ5~Φ20 | Φ12~Φ50 | Φ20~Φ80 | Φ5~Φ30 | Φ15~Φ80 | Φ15~Φ80 | Φ20~Φ90 |
| Dia. after extruding (mm) | Φ30 | Φ60 | Φ90 | Φ40 | Φ90 | Φ90 | Φ110 |
| Max.extruding speed (m/min) | 30 | 30 | 20 | 30 | 20 | 20 | 20 |
| Max. output (kg/h) | 150 | 380 | 550 | 70+150 | 150+380 | 70+150+380 | 150+550+380 |
| Heating area | 5 | 6 | 6 | 5+5 | 5+6 | 5+5+6 | 5+6+6 |
| P/O reel | Φ1600 | Φ2500 | Φ2500 | Φ2000 | Φ2500 | Φ2500 | Φ2500 |
| T/U reel | Φ2500 | Φ3150 | Φ3150 | Φ2500 | Φ3150 | Φ3150 | Φ3150 |
| Capstan type | TQDV2000 | TQDV2500 | TQDV3000 | TQDV2000 | TQDV3000 | TQDV3000 | TQDV3000 |
Machine Drawing
