Wire And Cable Twisting Machine Quadruple Twister CAT5E CAT6A CAT7 CAT8

Name: Wire And Cable Twisting Machine Quadruple Twister CAT5E CAT6A CAT7 CAT8
Brand: Herrman
SKU: 500 , 630
Rating: 4.9 (148 reviews)

Large Image : Wire And Cable Twisting Machine Quadruple Twister CAT5E CAT6A CAT7 CAT8

Product Details:

Place of Origin:	China
Brand Name:	Herrman
Certification:	ISO , CQC , CE , SGS
Model Number:	500 , 630

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	By Negotiation
Packaging Details:	To be packed in containers directly without packing and be fixed by steel rope. Suitable for long distance sea-transportation and well protected against change of climate, moisture and shock.
Delivery Time:	1 month after receipt of down payment
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	10 Sets per month

Contact Now

Detailed Product Description

Application:	Lan Cable CAT5E CAT6A CAT7 CAT8	Design:	Quadruple Pitch
Pay Off:	Zero Tension Flyer Pay Off	Color:	Decided By User
Bearing:	NSK Or China Famous Brand	Motor:	Siemens
High Light:	automatic wire twisting machine , double twist bunching machine

Wire And Cable Twisting Machine Quadruple Twister CAT5E CAT6A CAT7 CAT8

1. Application

Lan cable CAT5E CAT6A CAT7 CAT8

Eletronic Pitch :

Servo motor driven pitch , direct setting on touch screen with PLC controller , tolerance within ±2%

2. Technical Data

Model	500	630
rotate speed	max.1800rpm	max.1800rpm
cores diam	0.8-1.7mm	0.8-1.7mm
finished OD	1.6-3.4mm	1.6-3.4mm
pitch range	5-50mm	5-50mm
back twist ratio	0-100%	0-100%
bobbin	500 pay off,500take up	500 pay off,630take up
tension type	active slide rail type	active slide rail type
tension range	0.6-3kg	0.6-3kg
pitch tolerance	±2%	±2%

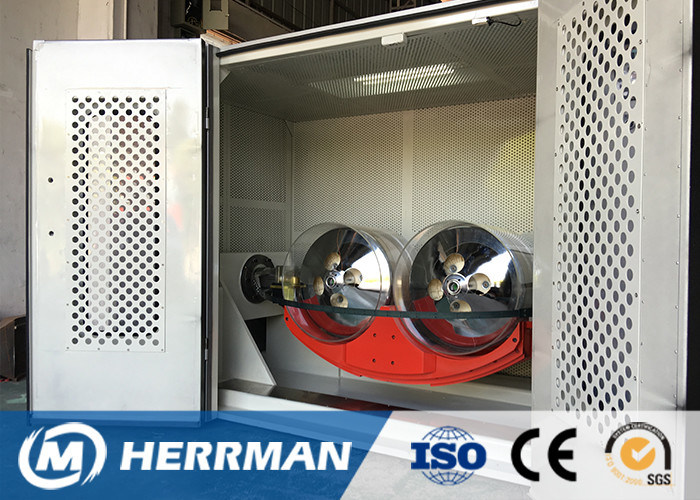

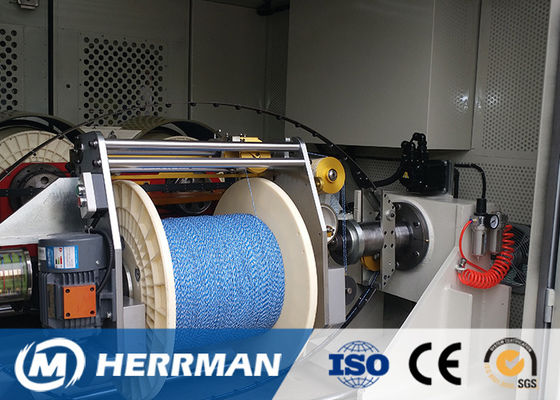

3. Picture for reference
