Product Details:
Payment & Shipping Terms:
|
| Application: | Lan Cable CAT5 , CAT5E , CAT6 | Design: | Triple Pitch |
|---|---|---|---|
| Color: | Decided By User | Bearing: | NSK Or China Famous Brand |
| Motor: | Siemens | Rotate Speed: | 1800rpm |
| High Light: | automatic wire twisting machine,double twist bunching machine |
||
High Speed Wire And Cable Twisting Machine Triple Twister Lan Cable CAT6 CAT5
1. Application
Lan Cable CAT5 , CAT5E , CAT6
Wide Usage
Triple twisting machine or torsion free pair twisting machine , available for CAT5E , CAT6
2. Features
Tape pitch controlled via servo motor, user friendly HMI control, full programmable, accuracy within 2%
Both applicable on torsion free and triple twisting machine for CAT5E and CAT6
Triple pitches design ,1.5 times speed to traditional double twisting machine when with 33% backtwisting rate
Integrated type,saving more space
3. Technical Data
| Model | 500 | 630 |
| rotate speed | max.1800rpm | max.1800rpm |
| cores diam | 0.8-1.7mm | 0.8-1.7mm |
| finished OD | 1.6-3.4mm | 1.6-3.4mm |
| pitch range | 5-50mm | 5-50mm |
| back twist ratio | 0-98% | 0-98% |
| bobbin | 500 pay off,500take up | 500 pay off,630take up |
| tension type | active slide rail type | active slide rail type |
| tension range | 0.6-3kg | 0.6-3kg |
| pitch tolerance | 2% | 2% |

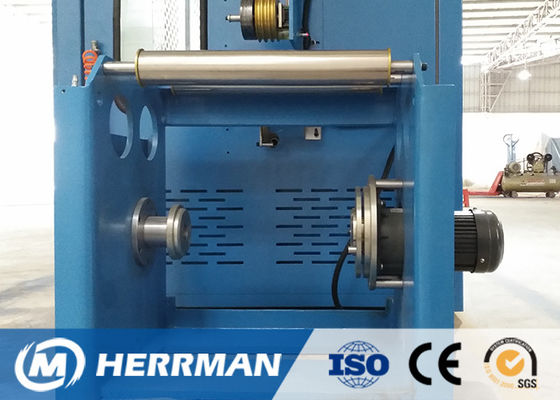

4. Picture for reference
