|Name:||Trolley Wire Drawing Machine||Function:||Wire Drawing|
|Outlet Wire Dia.:||10.8~14.4mm||Inlet Wire Dia.:||20~22mm|
|Section Elongation:||20~47%||Take Up Reel:||2000|
|Pay Off Reel:||2000||Motor:||SIEMENS|
wire drawing equipment,
cable drawing machine
Trolley Wire Drawing Machine Bull Block Drawing Machine copper alloy wire drawing machine

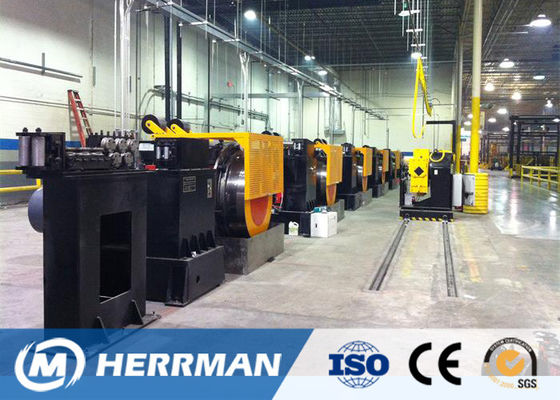

Trolley Wire Drawing Machine is use for drawing the copper alloy contact wire which used in the electrified railway, drawing the 20~22mm rod to 10.8~14.4mm contact wire.
1 Every drawing capstan is driven by individual motor. Dies arrangement is flexible.
2 The surface of drawing capstan is painted with tungsten carbide and processed by grinding treatment, which guarantee the long service life of drawing capstan.
3 Adopt inside and outside water circulation system to cool the drawing capstan. The sufficient cooling avoid the wire overhead and improve the drawing speed effectively.
4 Adopt DC motor and imported DC speed regulator to control the running of motor. Adopt imported PLC to command and command and coordinate the whole line. Adopt imported 10.4 inch color touch screen to display and set the parameter.
|Inlet Wire Dia.(mm)||20~22||20||copper|
|Outlet Wire Dia. (mm)||10.8~14.4mm||10.8~14.4mm||copper silver|
|Section Elongation||20~47%||20~47%||Cu-Sn copper magnesium|
|Max. drawing Speed(m/min)||60||60||Al or Al alloy flat wire|
|Motor power||1 pc of 75kw, 4pcs of 55kw, DC||1 pc of 75kw, 3pcs of 55kw, DC|
|Ratio of reducer||80~200||80~140|
|Pay off reel||2000||2000|
|Take up reel||2000||2000|
Drawing for reference
