0.4～1N Pay - Off Tension RIBBON Fiber Optic Cable Production Line 7m Length

Name: 0.4～1N Pay - Off Tension RIBBON Fiber Optic Cable Production Line 7m Length
Brand: Herrman
SKU: /
Price: 1.00 USD
Availability: InStock
Rating: 4.5 (108 reviews)

Large Image : 0.4～1N Pay - Off Tension RIBBON Fiber Optic Cable Production Line 7m Length

Product Details:

Place of Origin:	China
Brand Name:	Herrman
Certification:	ISO9001:2015,CE
Model Number:	/

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	By Negotiation
Packaging Details:	By seaworthy packing suitable for export
Delivery Time:	55 working days
Payment Terms:	L/C, T/T, D/A, D/P, T/T，By Negotiation
Supply Ability:	30 sets per month

Contact Now

Detailed Product Description

Name:	Fiber Optic Ribbon Cable Production Line	Structure Sp Structure Speed :	Max. 600m/min
Producing Speed :	50～400m/min	Take-up Tension:	2～6N
Pay-off Tension:	0.4～1N	Optical Fiber Reel Size :	25km And 50km Reel
Line Length:	About 7m	Motor:	SIEMENS
Bearing:	NSK	HS Code:	847940
Color:	Customized	Warranty:	1 Year
High Light:	fiber optic cable equipment , optical cable production line

Fiber optic ribbon cable Production Line optic ribbon machine

Description

This Fiber optic ribbon cable Production Line is mainly used to produce optical fiber ribbons with 4-core, 6-core and 12-core fibers.

Main Specification

Structure speed	Max. 600m/min
Producing speed	50～400m/min
Pay-off tension	0.4～1N
Take-up tension	2～6N
Optical fiber reel size	25km and 50km reel
Take-up reel	φ410×390×φ310 ,arbor hole φ50.8mm
Line Length	about 7m

Components of the line

3.1 12 cops of fiber pay-off stand 1set

3.2 Optical fiber ribbon pay-off 1set

3.3 Functional main cabinet (coating, curing, hauling off and guiding) 1set

3.4 Take-up and traversing device 1set

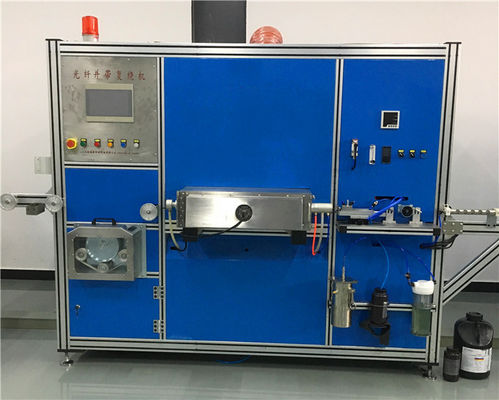

Machine Photo
