Frame Structure Wire And Cable Stranding Machine Rigid Type Strander

Frame Structure Wire And Cable Stranding Machine Rigid Type Strander
Frame Structure Wire And Cable Stranding Machine Rigid Type Strander
video play

Large Image :  Frame Structure Wire And Cable Stranding Machine Rigid Type Strander

Product Details:
Place of Origin: China
Brand Name: Herrman
Certification: ISO , CE , CQC , CE
Model Number: 400 , 500 , 630 , 710 , 800
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: By Negotiation
Packaging Details: To be packed in containers directly without packing and be fixed by steel rope. Suitable for long distance sea-transportation and well protected against change of climate, moisture and shock.
Delivery Time: 3 months after receipt of down payment
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 50 Set per year
Contact Now
Detailed Product Description
Transmission: Ground Shaft Or Separate Motor Application: Copper, Aluminum , Milliken Conductor
Bobbin Size: 400 , 500 , 630 , 710 , 800 Motor: Siemens
Bearing: Customerized Wire Dia.: Al 1.8 ~ 5.0 Cu 1.2 ~5.0
High Light:

wire stranding machine

,

tubular stranding machine

Frame Structure Wire And Cable Stranding Machine Rigid Type Strander



1. Application:



It is mainly used for stranding and compacting of copper , aluminum conductors of round and sector shapes , as well as pre-twisting compacting of Milliken conductors , which has reached modern advanced level in the world.



2. Technical parameter



Clamping : Pneumatic type clamping , Motor clamping , Manual Clamping

Tension control : Hysteresis tension control , Mechanical tension control

Mechanical tension control with feedback , Pneumatic tension control

Bobbin loading : Side bottom hydraulic loading , Side bottom electrical loading , Side loading

Bobbin size : 400mm , 500mm , 630mm , 710mm , 800mm

Bobbin quantity of single cage : From 6 bobbin to 48 bobbin



Bobbin size Max. rotation speed (rpm) Wire dia.(mm)
500 6B 12B 18B 24B 30B 36B Aluminum Copper
273 225 198 173 151 120 1.8-5.0
242 199 175 153 133 96   1.2-5.0
630 Normal 218 189 166 146 130 103 1.8-5.0
190 167 147 129 115 82   1.2-5.0
High speed 310 290 250 215 185 135 1.8-5.0
210 195 170 145 128 108   1.2-5.0

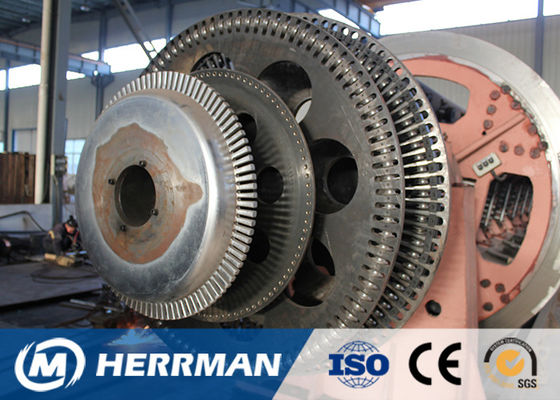

3. Pictures for reference



Frame Structure Wire And Cable Stranding Machine Rigid Type Strander 0
