Simplex And Duplex Fiber Optic Cable Production Line 150m/Min Speed Energy Efficient

Name: Simplex And Duplex Fiber Optic Cable Production Line 150m/Min Speed Energy Efficient
Brand: Herrman
SKU: /
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (108 reviews)

Large Image : Simplex And Duplex Fiber Optic Cable Production Line 150m/Min Speed Energy Efficient

Product Details:

Place of Origin:	China
Brand Name:	Herrman
Certification:	ISO9001:2015,CE
Model Number:	/

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	By Negotiation
Packaging Details:	Seaworthy packing suitable for export
Delivery Time:	50 working days
Payment Terms:	L/C, T/T, D/A, D/P,By Negotiation
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Simplex And Duplex Cable Production Line	Cable Size:	Φ2.0mm,Φ3.0mm 2.03.0mm,2.05.0mm
Aramid Pay-off Tension:	0.5N-3N±0.05N(adjustable)	Speed:	150mpm
Size Of Take-up Reel:	PN400～PN630	Size Of Optical Fiber Pay-off Reel:	PN 235 PN400mm
Aramid Cops:	10	HS Code:	847940
Motor:	SIEMENS	Bearing:	NSK
Color:	Customized	Warranty:	1 Year
High Light:	fiber optic cable equipment , optical cable production line

Simplex and Duplex Cable Production Line for optic fiber cable simplex cable duplex cable

Description

The Simplex and Duplex Cable Production Line is mainly used to produce 2 core indoor optical cable, Include: Simplex cable, Duplex cable, FTTH cable and so on.

Main Specification

Line speed	150m/min
Operation speed	120m/min simplex cable
Operation speed	80m/min (2.0*3.0mm cable)
Cable size	Φ2.0mm,Φ3.0mm 2.03.0mm,2.05.0mm
Size of optical fiber pay-off reel	PN 235 PN400mm
Size of take-up reel	PN400～PN630
Aramid cops	10
Aramid pay-off tension	0.5N-3N±0.05N(adjustable)

Drawing for reference

Simplex And Duplex Fiber Optic Cable Production Line 150m/Min Speed Energy Efficient 0

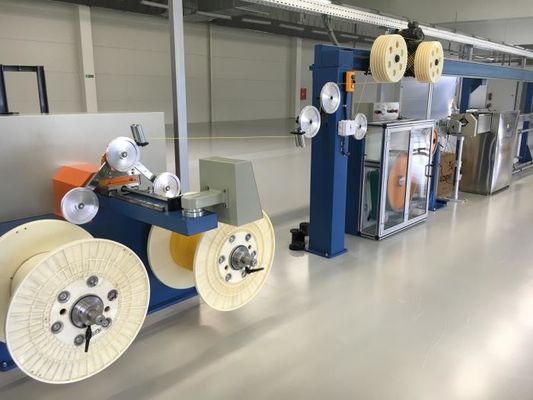

Machine Photo
