Product Details:
Payment & Shipping Terms:
|
| Product Name: | SJ80 Optic Fiber Cable Jacketing Machine | Function: | Cable Jacketing |
|---|---|---|---|
| Screw Type : | BM | Kevlar Device: | Included |
| Metal Armoring: | Including | Max Extruder Output : | 280kg/h |
| Line Speed : | 10--90 M/min | Line Length : | <60m Approximately |
| Central Height: | 1000mm | Motor: | SIEMENS |
| Bearing: | NSK | HS Code: | 847940 |
| Color: | Customized | Warranty: | 1 Year |
| High Light: | optical fiber cable manufacturing machinery,optical cable production line |
||
SJ80 Optic fiber cable jacketing machine extrusion line for outdoor cable
Description
The SJ80 Optic fiber cable jacketing machine is used to extrude inner sheathing and outer sheathing for optical cable, the extruding materials: LDPE, MDPE, HDPE and so on.
Main Specification
| Cable Diameter | Ф7-Ф35mm |
| Structure Speed | 100m/min |
| Line Speed | 10--90 m/min |
| Line Length | <60m approximately |
| Screw Type | BM |
| Line center height | 1000mm |
| Pay-off reel size | PN1000-PN2000 |
| Take-up Reel Size | PN1000-PN2000 |
| Extruder Output | Max280kg/h |
Line Configuration

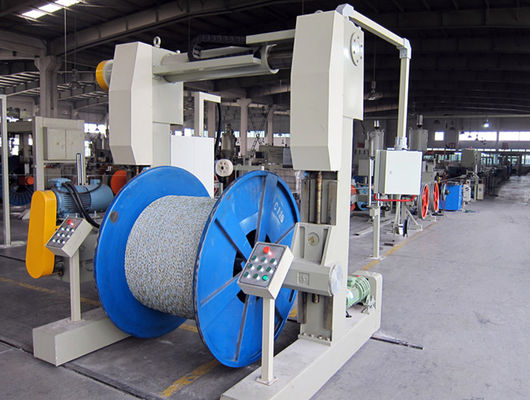

1Φ1600 Portal type rail travelling pay-off
2 Swaying beam dancer
3 SJ80×25 extruder and cross head
4 Loader and hopper compound dryer
5 Hot-water tank and 4m movable hot-water trough
6 Stainless steel cooling-water trough16m
7 Blow dryer device
8 Diameter control device
9 Lump&neck detector
10 Φ800 Capstan
11 Swaying beam dancer
12 Φ1600 Portal type rail travelling take-up with traverse
13 Electrical control system
Drawing for reference
