Product Details:
Payment & Shipping Terms:
|
Color: | Customerized | Motor: | Siemens |
---|---|---|---|
Bearing: | China Famous Brand Or Customerized | Take Up: | Dual Bobbin Take Up |
Capstan Diameter: | 450mm | Drawing Material: | Al,Al Alloy |
High Light: | copper wire drawing machine,cable drawing machine |
Separate Motor Driven Type Wire Drawing Machine Al alloy Rod Breakdown Machine
1. Instruction
The 13 Die Aluminum Breakdown Machine is used to drawing Φ9mm Al bar to 1.8mm~4.5mm Al wire. and take up by T/U machine with dual bobbins.
2. Main Technical Data
Type: Al Drawing Machine | Slipping Type Breakdown Machine | |
Dia of inlet wire(mm) | 9 | |
Dia of outlet wire(mm) | 1.2~4.0 | |
Drawing drum wheel dia(mm) | 450 | |
Max.Drawing lines | 13 | |
Line speed(m/s) | 25 | |
Outlet eye dia(rpm) | 20 | |
Eye die elongation | 10~38% | |
Accumulation capacity(m) | 17.5 | |
Circle machine reel | 480x900x1300 | |
Dual reel take up | PND500~PND630 | |
Main motor power(kw) | 280 | |
Fix speed wheel power(kw) | 75 | |
Max.annealing voltage(AC) | 65V | |
Annealing power | 360KVA |
3. Structure characteristics
Type:straight line type wire drawing,dual-motor drive,change die fast,die seat arrangement is upper treading type.
AC motor drive,save 20% electricity compared with DC motor,save much operation cost annually.
Cooling way: Haft immerse
Drawing machine bottom is drawing liquid trough,drawing oil are through valve to trough,and if there is drawing liquid in interlayer,also inflow to the trough.
It has two level out of gear structure.when drawing wire diameter bigger than 2.2,make 11 die, 12 die cone pulley disconnect and not rotate.When drawing wire diameter bigger than 2.8m, make
die,10die,11die,12die cone pulley disconnect and not rotate. This can reduce gear wear and can save energy.
Most gear and beariong can be taken out from top of gearboix,which is convenient for assembly and disassembly.
Main machine Adopts dual layers stainless steel door cover,electrical lifting, Excellent sealing and no leakage.
Wire drawing capstan uses medium carbon steel surface spray tungsten carbide,hardness is higher.
Capstan uses design to prevent scratch.
Wire distributing place is installed with speed testing meter counter encoder,no slipping,precision is high.
Carbon brush capstan uses air-cooling.

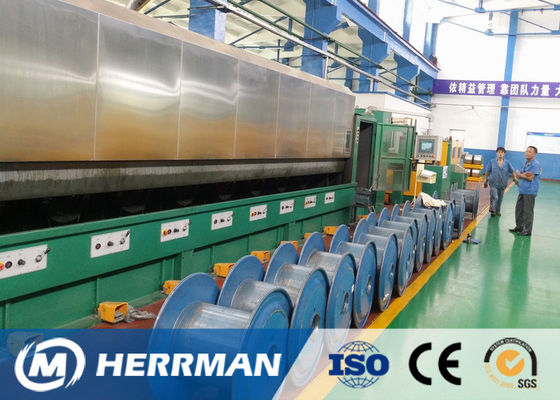

4. Picture for reference
