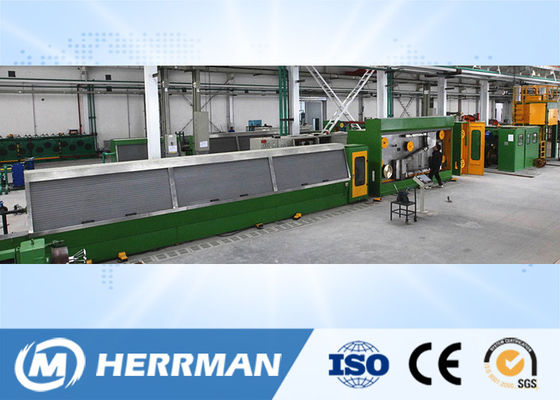

Copper Rod Drawing Machine with Continuous Annealing and Double Spooler

Copper Rod Drawing Machine with Continuous Annealing and Double Spooler
Copper Rod Drawing Machine with Continuous Annealing and Double Spooler

Large Image :  Copper Rod Drawing Machine with Continuous Annealing and Double Spooler

Product Details:
Place of Origin: China
Brand Name: Herrman
Certification: ISO, CE
Model Number: HM450-13, HM450-11, HM450-9
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD160,000 - 300,000 / set
Packaging Details: To be packed in the containers, suitable for long distance sea-transportation and well protected against change of climate, moisture and shock.
Delivery Time: 120 days
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: 50 Sets per year as per request
Detailed Product Description
Input Wire: Φ8mm Copper Rod Output Wire: Min. Φ1.3mm
Motor Power: 200~250kw Max. Speed: 1500m/min
Bearing: NSK Converter: SIEMENS G120
High Light:

copper wire drawing machine

,

wire drawing equipment

Copper Rod Drawing Machine with Continuous Annealing and Double Spooler



1. Application

This line is mainly used for drawing the Φ8mm copper rod to Φ1.4~4.5mm hard and soft copper wire.



2. Main Feature

2.1 Full immerging or spray for dies and capstans to ensure an effective cooling and lubricating upon wires.

2.2 The drawing capstans are mounted in one row, easy for threading wire.

2.3 Convenient operation and quick changing dies.





3. Main Technical Specification

Model HM450-13 HM450-11 HM450-9
Inlet rod dia. Φ8mm Φ8mm Φ8mm
Outlet wire dia. Φ1.3~Φ4.5mm Φ1.6~Φ4.5mm Φ2.1~Φ4.5mm
Max. mechanical speed 25m/s 25m/s 25m/s
Drawing wheel dia. Φ450mm Φ450mm Φ450mm
Drawing motor 250kw 220kw 200kw
Fixed speed wheel motor 75kw 75kw 75kw
