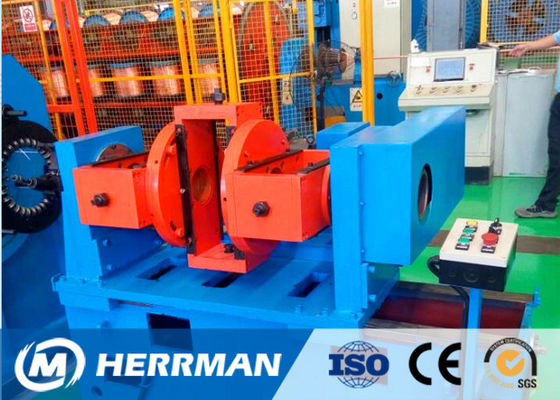

Armoring Tubular Planetary Cable Stranding Machine Pneumatic Tension Control

Large Image : Armoring Tubular Planetary Cable Stranding Machine Pneumatic Tension Control

Product Details:

Place of Origin:	China
Brand Name:	Herrman
Certification:	ISO , CE , CQC , CE
Model Number:	400 , 500 , 630 , 710 , 800

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	By Negotiation
Packaging Details:	To be packed in containers directly without packing and be fixed by steel rope. Suitable for long distance sea-transportation and well protected against change of climate, moisture and shock.
Delivery Time:	2 months after receipt of down payment
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	1 set per 1 month

Contact Now

Detailed Product Description

Driven:	Ground Shaft Or Separate Motor	Material:	Copper, Aluminum
Reel Size:	400 , 500 , 630 , 710 , 800	Motor Bramd:	Siemens
Bearing Bramd:	NSK	Application:	Stranding,armoring
Warranty:	1 Year
Highlight:	armoring planetary stranding machine , CQC cable stranding machine , CQC tubular strander

Rigid Type Wire & Cable Stranding Machine

1. Characteristics

Bobbin size : 400mm , 500mm , 630mm , 710mm , 800mm

Bobbin quantity of single cage : From 6 bobbin to 48 bobbin

Clamping : Pneumatic type clamping , Motor clamping , Manual Clamping

Tension control : Hysteresis tension control , Mechanical tension control

Mechanical tension control with feedback , Pneumatic tension control

Bobbin loading : Side bottom hydraulic loading , Side bottom electrical loading , Side loading

2.Main Technical specification

Bobbin size		Max. rotation speed (rpm)						Wire dia.(mm)
500		6B	12B	18B	24B	30B	36B	Aluminum	Copper
		273	225	198	173	151	120	1.8-5.0
		242	199	175	153	133	96		1.2-5.0
630	Normal	218	189	166	146	130	103	1.8-5.0
	Normal	190	167	147	129	115	82		1.2-5.0
	High speed	310	290	250	215	185	135	1.8-5.0
	High speed	210	195	170	145	128	108		1.2-5.0

3. Picture
