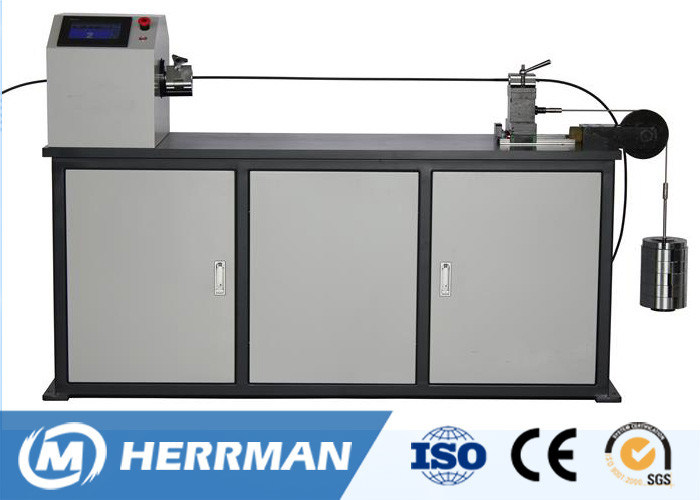

Fiber Optic Cable Torsion Testing Equipment , ADSS Wire Torsion Testing Machine

Fiber Optic Cable Torsion Testing Equipment , ADSS Wire Torsion Testing Machine
Fiber Optic Cable Torsion Testing Equipment , ADSS Wire Torsion Testing Machine

Large Image :  Fiber Optic Cable Torsion Testing Equipment , ADSS Wire Torsion Testing Machine

Product Details:
Place of Origin: China
Brand Name: Herrman
Certification: ISO9001:2015,CE
Model Number: GNZ-1000
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: by carton suitable for export
Delivery Time: 45 working days
Payment Terms: L/C, T/T, D/A, D/P,By Negotiation
Supply Ability: 30 sets per month
Detailed Product Description
Name: Fiber Optic Cable Torsion Testing Equipment Function: Cable Testing
Model: GNZ-1000 Host Power Supply: AC220V±10%,50~60Hz,0.8kW
Torsion Angle: ±90°,±180°,±360°, Set Freely Standard Weight: 5kgx×4,2.5kg×1
Torsioning Speed: 10~30 Times / Minutes Motor: SIEMENS
Bearing: NSK HS Code: 9031809090
The Maximum Length Of Torsion: 1000mm Weight: 600KGS
Color: Customized Warranty: 1 Year
High Light:

cable testing equipment

,

wire testing machine

Fiber optic cable torsion testing equipment ADSS cable torsion tester



DESCRIPTION

Fiber optic cable torsion testing equipment is used to test optical cable resistance torsion properties. By applying torsion force, for the qualified optical cable, no fiber fracture, fiber attenuation values meet standard, no optic
cable jacket cracking, no damage of fiber and components



Fiber optic cable torsion testing equipment adopts the man-machine interface and PLC control, TFT true color screen display test parameters and data. By the configuration of different standard weights and different clamp
jacket, it can meet"bow-type drop cables for access network"impact test. The equipment is
infinitely adjustable-speed, beautiful appearance, stable performance, simple and safe operation



MAIN SPECIFICATION

model GNZ-1000
The maximum length of torsion 1000mm
Torsion Angle ±90°,±180°,±360°, set freely
Torsion speed (5-30)times min, when the angle is +180, set freely
Torsion times 1-9999, set freely
Standard weight Base 5 kg
Standard weight 5kgx×4,2.5kg×1
Host power supply AC220V±10%,50~60Hz,0.8kW
Weigh 600KG



Installation Requirement



Power supply: single phase, AC220V±10%, 5060Hz, 0.8kW.

Install onto a stable base and room of more than 1 m around.

Ambient temperature: 25±10, humidity: ≤80% non-condensing.

No vibrating or corrosive media indoor.



Lay-out Drawing

Fiber Optic Cable Torsion Testing Equipment , ADSS Wire Torsion Testing Machine 0
