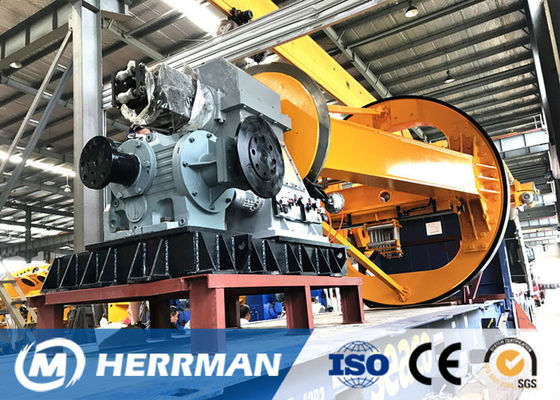

50RPM Armoring Stranding Drum Twister Cable Machine For Pre Spiral

50RPM Armoring Stranding Drum Twister Cable Machine For Pre Spiral
50RPM Armoring Stranding Drum Twister Cable Machine For Pre Spiral
video play

Large Image :  50RPM Armoring Stranding Drum Twister Cable Machine For Pre Spiral

Product Details:
Place of Origin: China
Brand Name: Herrman
Certification: ISO , CQC , CE , SGS
Model Number: 2500mm, 3150mm,4000mm,3600mm,etc
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: By Negotiation
Packaging Details: Stable Function Easy Maintenance Drum Twister With Stranding To be packed into containers,suitable for long distance sea transportation and well protected against change of climate,moisture and shock.
Delivery Time: 3 months after receipt of down payment
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10 Sets per month
Contact Now
Detailed Product Description
Product Name: Stable Function Easy Maintenance Drum Twister With Stranding Function: Armoring Or Laying Up
Motor: China Siemens Bearing: NSK Or China Famous Brand
Inverter: Danfoss Finished Cable Diameter: 130mm
Take Up Size: 2500mm, 3150mm, 4000mm, Etc. Direction: Left Hand Machine Or Right Hand Machine
Color: Customerized Aoolication: Wire And Cable Production
High Light:

stranding drum twister cable machine

,

Armoring drum twister cable machine

,

50RPM drum twister machine

Stable Function Easy Maintenance Drum Twister With Stranding



Description



Stable Function Easy Maintenance Drum Twister With Stranding is used for laying-up of large section, long length power cables. The line is used for steel wires armoring of power cables, too.he line is for laying-up of pre-spiral or non-pre-spiral cable cores and Milliken cable. This is our fist product with top quality in China and also price is very competitive.



Main Technical Data of Stable Function Easy Maintenance Drum Twister With Stranding



Main Technical Data:
Model JPD-2500 JPD-3150 JPD-3600
Max.cabling OD Φ20~Φ120 Φ25~Φ130 Φ25~Φ130
Max.rotation speed of T/U & P/O (RPM) 50 30 30
Cabling pitch can be adjusted, step-less
Max.Linear speed (m/min) 50 40 40
Max.pulling force Standard 3000
Armoring with 96 steel wires 5000
Central P/O reel Φ2500 Φ3150 Φ3600
P/O reel Φ1600 Φ2000 Φ2500
T/U reel Φ2500 Φ3150 Φ3600
Armoring steel wire reel Φ500 Φ630 Φ630
Main motor power (KW) 45 55 75
Central P/O motor power (KW) 22 15 18.5



Packing in our factory of Stable Function Easy Maintenance Drum Twister With Stranding



50RPM Armoring Stranding Drum Twister Cable Machine For Pre Spiral 0



Loading photo in our factory of Stable Function Easy Maintenance Drum Twister With Stranding



50RPM Armoring Stranding Drum Twister Cable Machine For Pre Spiral 1



Components of Stable Function Easy Maintenance Drum Twister With Stranding



50RPM Armoring Stranding Drum Twister Cable Machine For Pre Spiral 2
