Pultrusion Machine Line Wire Cable Machine 3.0KW 0.3 - 2.0 M/Min Pulling Speed

China Pultrusion Machine Line Wire Cable Machine 3.0KW 0.3 - 2.0 M/Min Pulling Speed supplier
Pultrusion Machine Line Wire Cable Machine 3.0KW 0.3 - 2.0 M/Min Pulling Speed supplier Pultrusion Machine Line Wire Cable Machine 3.0KW 0.3 - 2.0 M/Min Pulling Speed supplier Pultrusion Machine Line Wire Cable Machine 3.0KW 0.3 - 2.0 M/Min Pulling Speed supplier

Large Image :  Pultrusion Machine Line Wire Cable Machine 3.0KW 0.3 - 2.0 M/Min Pulling Speed

Product Details:

Place of Origin: CHINA
Brand Name: HERRMAN
Certification: CE
Model Number: Two Puller + Independent control

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: USD 990000
Packaging Details: EXPORT PACKING
Delivery Time: 90DAYS
Payment Terms: L/C, D/P, T/T
Supply Ability: 5SETS PER MONTHS
Contact Now
Detailed Product Description
Model: Two Puller + Independent Control Name: Pultrusion Machine Line Wire Cable Machine
Pulling Speed Range: 0.3 ~2.0 M/min Puller Pad Engagement Length: 1500mm

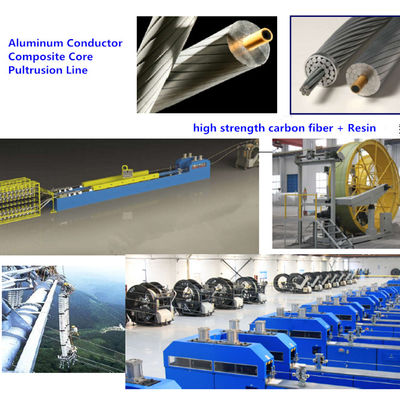

Pultrusion Machine Line for Composite carbon fiber core of Conductor





1. Pneumatic Caterpillar Pultrusion Machinery (Two Puller + Independent control )



Maximum Pulling Force 4 tons

Maximum Clamping Force, Each independent drive tractors.

Pulling Speed Range 0.3 ~2.0 m/min

Puller Pad Engagement Length 1500mm

Maximum Clamping Size:100 mm wide, 80 mm high.

Puller with casting type polyurethane by layering surface hardness:85 degrees.

Electric Drive Motor Power 3.0 KW.

Each machine line, automatic winding machine sharing a 0.3 m after gas storage bag, ensure the supplied compressed air pressure, volume stability.

Each machine line With mold import and export with exhaust device, ensure the scene without peculiar smell.



2. Each equipment equipment and parts list

Item No. DESCRIPTIONS TYPE Origin & Brand QNTY
1

Pneumatic Caterpillar Pultrusion Machinery



HM-4TL   2
2 Parameter displayer with 12 inch Siemens Touch screen Siemens Siemens 2
3

Meters detector



NMS-P Mingrui 2
4

Bidirectional diameter detector



NDIA-2/W Mingrui 2
5 Mold platform (and the pull sensor)     2
6 Pull sensor 3Ton zhengdan 2
7 After heating oven 1000/50   6
8 Ink-jet printing --   2
9

Inkjet printing bar code



--   2
10

Technology package speed



--   2
11 Exhaust device for Mold import and export NEX-M/E-C   2
12 Back glue make use of the control device N-B-RESIN   2
13 Heater N200/100   8
13

Thermocouple



“K”   9
14 Equipment independent dosage control device --   2
15 Creel for Carbon & fiber Glass & within tensile control 120-C/F   2
16 Automatic Winding Machine 5000/800   2
