Pressure-bearing Steel Bar Interlock Armouring Machine For Marine Flexible Pipeline

China Pressure-bearing Steel Bar Interlock Armouring Machine For Marine Flexible Pipeline supplier
Pressure-bearing Steel Bar Interlock Armouring Machine For Marine Flexible Pipeline supplier Pressure-bearing Steel Bar Interlock Armouring Machine For Marine Flexible Pipeline supplier Pressure-bearing Steel Bar Interlock Armouring Machine For Marine Flexible Pipeline supplier Pressure-bearing Steel Bar Interlock Armouring Machine For Marine Flexible Pipeline supplier

Large Image :  Pressure-bearing Steel Bar Interlock Armouring Machine For Marine Flexible Pipeline

Product Details:

Place of Origin: China
Brand Name: Herrman
Certification: CE, UL, SGS,TUV, ISO, GS
Model Number: 420/1+1

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: By Negotiation
Packaging Details: Export Packing
Delivery Time: 130 Working Days
Payment Terms: L/C, D/A, D/P, T/T, or By Negotiation
Supply Ability: 2 Sets Per Month
Contact Now
Detailed Product Description
Product Name: Pressure-bearing Steel Bar Interlock Armouring Machine For Marine Flexible Pipeline Steel Tape QTY: 2 Pads
Stainless Steel Tape O.D.: 2400mm Max. Locking O.D.: 420mm
Max. Locking Rotating Speed: 40rpm Line Speed: 1.2m/min
High Light:

flexible pipe machine

,

pipe coiler machine

Pressure-bearing Steel Bar Interlock Armouring Machine For Marine Flexible Pipeline





Main Feature



This machine is mainly used for producing inner liner of deep-sea oil pipeline, which can be borne the strong pressure inside and outside. It consisit of stainless steel tape inter-locking machine, caterpillar, rollers stand and electrical control system.



- The machine has two pads, one for paying-off tapes, and another for storing tapes. The mutual transformation of the two tapes function improves production efficiency greatly.



- It adopts 6 pairs press rollers for pressing and forming.



- It adopts 6 pairs press rollers for winding forming.



- Each part is driven by independent motor. It adopts SIEMENS PLC to unified control and manage the working condition of each motor.





Main Technical Specification



Specification SK-420/1+1
Qty of tape plates 2 plates
Stainless steel tape O.D. 2400mm
Steel tape size Width 28-72mm
Thickness 0.5-2.0mm
Max. locking O.D. 420mm
Max. Locking rotating speed 40rpm
Motor power 45kw
Haul-off device Hual-off type 3 belts caterpillar
Max. hual-off force 3T
Max. linear speed 1.2m/min
Hual-off motor power

5.5kw

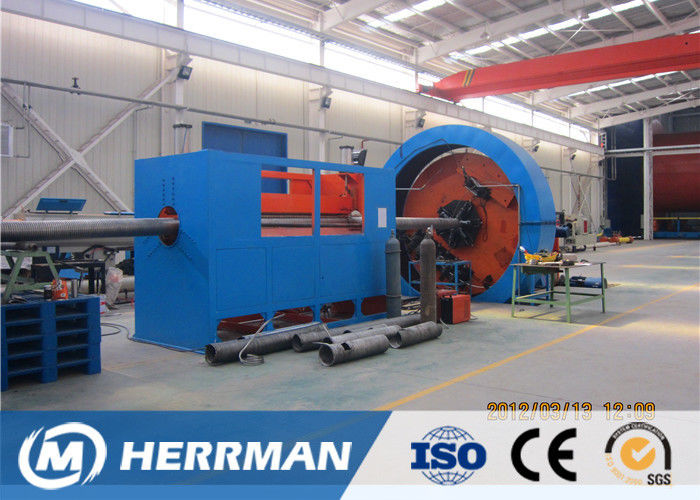

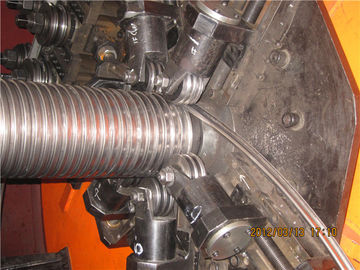

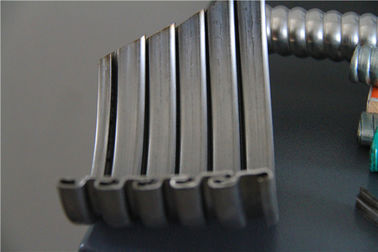

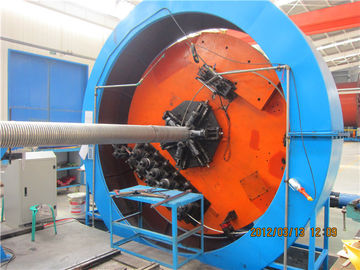

Machine Photo



Pressure-bearing Steel Bar Interlock Armouring Machine For Marine Flexible PipelinePressure-bearing Steel Bar Interlock Armouring Machine For Marine Flexible Pipeline
