Reinforced Flat Wire Rigid Armouring Machine Of Submarine Flexible Pipe Production Line

Reinforced Flat Wire Rigid Armouring Machine Of Submarine Flexible Pipe Production Line
Reinforced Flat Wire Rigid Armouring Machine Of Submarine Flexible Pipe Production Line Reinforced Flat Wire Rigid Armouring Machine Of Submarine Flexible Pipe Production Line Reinforced Flat Wire Rigid Armouring Machine Of Submarine Flexible Pipe Production Line Reinforced Flat Wire Rigid Armouring Machine Of Submarine Flexible Pipe Production Line

Large Image :  Reinforced Flat Wire Rigid Armouring Machine Of Submarine Flexible Pipe Production Line

Product Details:
Place of Origin: China
Brand Name: Herrman
Certification: CE, UL, SGS,TUV, ISO, GS
Model Number: 630/80+80
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: By Negotiation
Packaging Details: Export Packing
Delivery Time: 108 Working Days
Payment Terms: L/C, D/A, D/P, T/T, or By Negotiation
Supply Ability: 2 Sets Per Month
Detailed Product Description
Product Name: Reinforced Flat Wire Rigid Armouring Machine Of Submarine Flexible Pipe Production Line Single Wire Diameter: 0.6mm - 6.0mm
Max. Armoring O.D.: 325mm Max. Haul-off Force: 10T
Line Speed: 15m/min Haul-off Type: 6-claws Haul-off Device
High Light:

pipe coiler machine

,

pipe manufacturing machine

Reinforced Flat Wire Rigid Armouring Machine Of Submarine Flexible Pipe Production Line





1. Main Feature



The reinforced flat wire armouring machine is mainly applied for armouring the reinforced layer to ensure the outstanding tensile strength of flexible pipe.



- Steel wire pay-off tension is controlled by mechanical friction(adjustable) or pneumatic friction(constant tension and adjustable).



- Stranding cage adopts rigid frame type with good rigidity.



- Each part is driven by independent motor. It adopts SIEMENS PLC to unified control and manage the working condition of each motor. The rotating speed and stranding pitch have be changed by stepless, and can be adjusted and dispalyed on the touch screen.





2. Main Technical Specification



Specification JLK-400/160+160 JLK-630/80+80
Single wire diameter 0.6-2.0mm 1.5-6.0mm
Max. armoring O.D. 325mm 325mm
Max. rotating speed of stranding cage 10r/min 10r/min
Haul-off device Haul-off type 6-claws haul-off device 6-claws haul-off device
Max. haul-off force 10T 10T
Max. linear speed 15m/min 15m/min
Haul-off motor power 11kw

11kw








Machine Photo

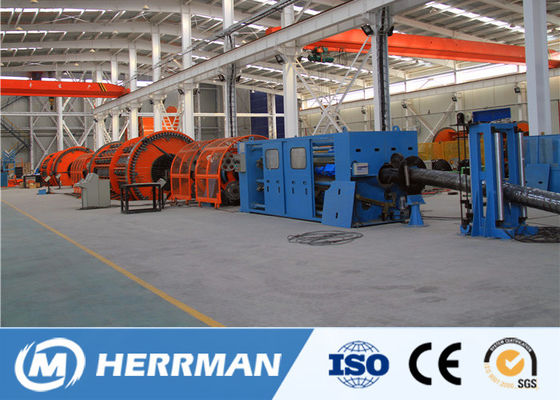

Reinforced Flat Wire Rigid Armouring Machine Of Submarine Flexible Pipe Production Line 0

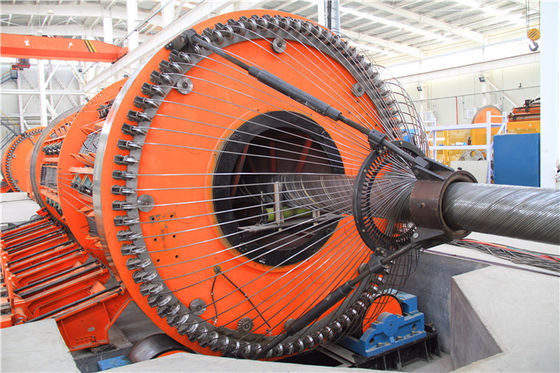

Reinforced Flat Wire Rigid Armouring Machine Of Submarine Flexible Pipe Production Line 1
