Automatic Fiber Optic Cable Production Line Loose Tube Secondary Cable Coating Machine

Automatic Fiber Optic Cable Production Line Loose Tube Secondary Cable Coating Machine
Automatic Fiber Optic Cable Production Line Loose Tube Secondary Cable Coating Machine Automatic Fiber Optic Cable Production Line Loose Tube Secondary Cable Coating Machine Automatic Fiber Optic Cable Production Line Loose Tube Secondary Cable Coating Machine Automatic Fiber Optic Cable Production Line Loose Tube Secondary Cable Coating Machine Automatic Fiber Optic Cable Production Line Loose Tube Secondary Cable Coating Machine

Large Image :  Automatic Fiber Optic Cable Production Line Loose Tube Secondary Cable Coating Machine Get Best Price

Product Details:

Place of Origin: China
Brand Name: Herrman
Certification: CE, UL, SGS,TUV, ISO, GS
Model Number: 50MM

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: By Negotiation
Packaging Details: Export Packing
Delivery Time: 68 Working Days
Payment Terms: L/C, D/A, D/P, T/T, or By Negotiation
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Optical Fiber Secondary Coating Line For Loose Tube Optical Fiber Number: 12PCS, 24PCS
Pay-off Tension: (0.4-1.2N)±0.05N Line Sspeed: 800n/min
Extruded Tube Dia.: (Ф1.0-Ф6.0)mm±0.05 E.F.L Range: 0~0.3%
High Light:

fiber optic cable equipment

,

optical fiber cable manufacturing machinery

Optical Fiber Secondary Coating Line For Loose Tube 2 - 12 Optical Fibers with PE, PBT



Application,

Secondary coating line has a max. working speed of 350m/min. The secondary coating line is consisted of: 24 Optical fiber pay-off, Jelly degassing and filling device(vacuum type) ,. Extruding group 50mm, Hot water trough and hot water tank,.Φ800 over-length capstan, Cooling trough and chiller, Blowing dryer , Diameter gauge, Wheel capstan dancer of over-length control, Wheel capstan haul-off, Take-up dancer, Ф800mm Dual automatic take-up, Electrical control system (PLC+ touch screen)





Main Technical Data



Type
  
  HM05 HM06

 Optical fiber number
12 24
 Pay-off tension    (0.4-1.2N)±0.05N (0.4-1.2N)±0.05N
 Optical fiber reel size 25km/50km reel 25km/50km reel
 Line structure speed 450m/min 800m/min
 Operation speed 20~350m/min (Ф1.8) 600m/min (Ф1.8*0.3mm, 6-fiber, without SZ device)
 Extruded tube dia. (Ф1.8—Ф4.0)mm±0.05 (Ф1.0-Ф6.0)mm±0.05
 Take up reel size PN800mm PN800mm, PN630
 E.F.L range 0~0.3% 0~0.3%
 Extra-attenuation ≤0.02dB/km ≤0.02dB/km(1310nm,1550nm)

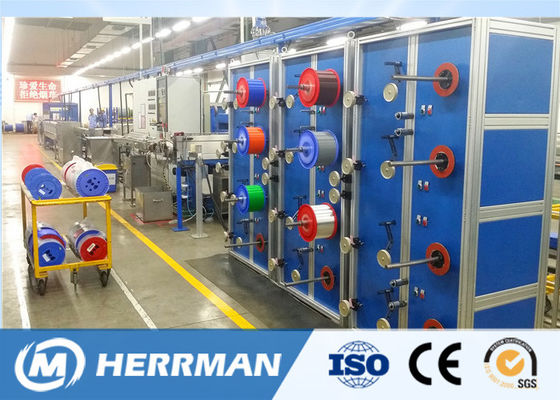

Machine Photo

Automatic Fiber Optic Cable Production Line Loose Tube Secondary Cable Coating Machine 0
