Aluminum Conductor Cable Rewinding Machine With Taping Head 100m / Min Line Speed

China Aluminum Conductor Cable Rewinding Machine With Taping Head 100m / Min Line Speed supplier
Aluminum Conductor Cable Rewinding Machine With Taping Head 100m / Min Line Speed supplier Aluminum Conductor Cable Rewinding Machine With Taping Head 100m / Min Line Speed supplier Aluminum Conductor Cable Rewinding Machine With Taping Head 100m / Min Line Speed supplier

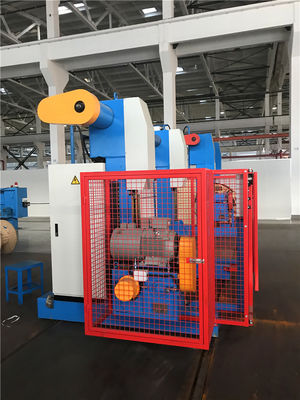

Large Image :  Aluminum Conductor Cable Rewinding Machine With Taping Head 100m / Min Line Speed

Product Details:

Place of Origin: China
Brand Name: Herrman
Certification: CE, UL, GS, SGS, TUV, ISO
Model Number: 630, 800, 1000, 1600, 2000, 2600, 3200, 3600, 4000,5000, 6000

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: EXPORT PACKING
Delivery Time: 70 DAYS
Payment Terms: L/C, D/A, D/P, T/T or By Negotiation
Supply Ability: 20 SET PER MONTH
Contact Now
Detailed Product Description
Product Name: High Speed Copper And Aluminum Conductor Winding Machine With Taping Head Application: All Kinds Cable Rewinding
Cable Diameter: 10mm - 100mm Line Speed: 100m/min
Reel Type: Pintle Type, Portal Type, Grantry Type, Fork Type Diameter Of Reel: 630mm - 6000mm

High Speed Copper And Aluminum Wire Cable Rewinding Machine With Taping



Equipment use:



This machine is mainly use for rewinding the φ10~φ100mm cable, max rewinding speed is 100m/min.




Structural features :


1.Gantry rail walk type. Placed on or under the tubular structure


2. The frame with rectangular tube welded together, the "A" type structure, has the stable structure. The characteristics of the bearing capacity is strong, neat appearance. Beautiful


3. The elevator guide rail for high strength and linear rolling guide (linear guide rail pair)


4. Line transmission adopts hard gear box, transmission torque, low noise


5. Take-up main motor


A. Take-up main motor adopts dc speed regulating motor, controller for continental series products


B. Take-up main motor adopts dc speed regulating motor, controller for continental series products


6.Row line motor adopts frequency conversion motor, controller of Siemens or Danfoss products, wiring, automatic tracking and linear velocity, strings of pitch and take-up tension can be set on the touch screen (Siemens) of operation PLC programmable controller with various host from spreading.



Main technical parameters



Model specification ALSP.ALF1250/2500 ALSP.ALF2000/3150 ALSP.ALF2500/4500 ALSP.ALF3150/5000
Coil specification shall apply PN1250-PN2500 PN2000-PN3150 PN2500-PN4500 PN3150-PN5000
Applicable to cable diameter(mm) ≤120 ≤160 ≤160 ≤180
Coil diameter(mm) Φ1250~Φ2500 Φ2000~Φ4200 Φ2500~Φ4500 Φ3150~Φ5000
Apply coil width(mm) 1180~1900 1500~2300 1900~2500 2300~3000
Closed linear velocity (mm/min) ≤80 ≤50 ≤35 ≤30
Ribbon cable precision (%) 1~2% 1~2% 1~2% 1~2%
Bearing capacity(t) 15 18 35 40




Machine Drawing

Aluminum Conductor Cable Rewinding Machine With Taping Head 100m / Min Line Speed
